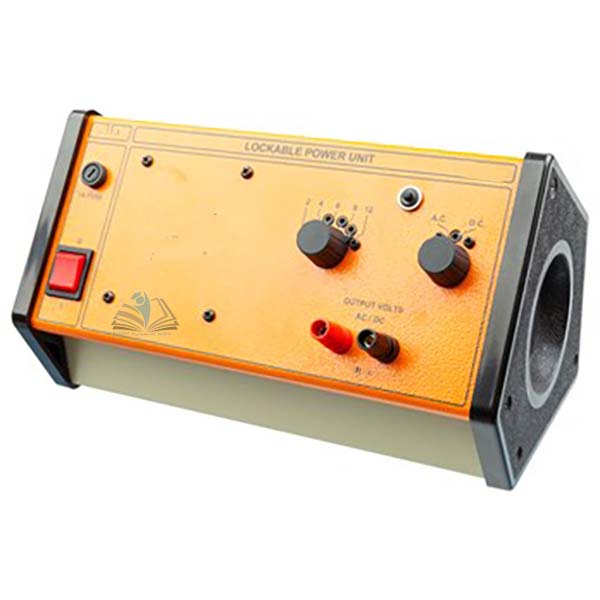

Basic PSU
Product Code : EL-PS-10371
Quick Answer: The Basic PSU is an entry-level lockable power supply giving a.c. or unsmoothed d.c. at 2, 4, 6, 9 or 12 volts, at up to 4 amps.
Last updated: October 2026
Key Features
- Five-position switch for 2, 4, 6, 9 or 12 V
- Voltage lockable at one setting or within a range
- Separate switch selects a.c. or unsmoothed d.c.
- Two shrouded 4mm output sockets
- Resettable thermal trip on the secondary circuit
- T1A time-delay mains fuse on the front panel
Technical Specifications
| Specification | Value |
|---|---|
| Output range | 2, 4, 6, 9, 12 V ac or dc unsmoothed |
| Maximum voltage | 12 V |
| Output control | Stepped |
| Mains input | 230V ac 50Hz |
| Power rating | 80 VA |
| Temperature limits | -5 to 50°C |
| Humidity limits | 10 - 90 %RH |
| Dimensions | (L)290mm x (W)165mm x (H)165mm |
About This Product
This unit covers everyday needs such as basic electricity work, ray optics boxes and immersion heaters. Hex socket screws around the selector let a teacher or technician lock the voltage using the Allen key provided. The socket shrouds can be partly unscrewed to take bare wires. It has a captive mains lead with cable wraps on the back panel, and spare terminals and cable brackets are available. Besides buyers across India, the Basic PSU can be exported to institutions in Bahrain, Guyana, Nicaragua, Armenia, Palestine and Benin.
Frequently Asked Questions
Q1. Can the a.c. and d.c. outputs be used at the same time?
No. Both come from the same sockets and are never live together, which stops students connecting the a.c. and d.c. outputs to each other.
Related: Power Supplies, Replacement Terminal Sockets - Red, Lockmaster Power Unit.
For a quotation on the Basic PSU, contact School Equipments India.
