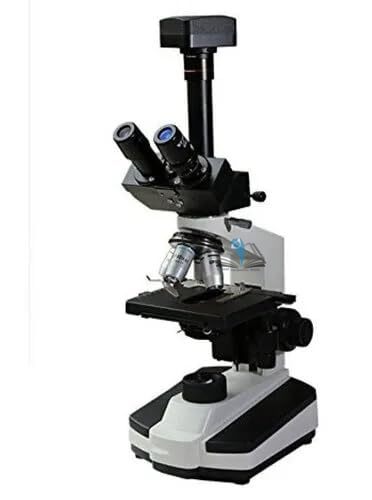

Digital Trinocular Microscope with 2MP USB Camera
.jpg)
Product Code : SCL-MA-12231
Quick Answer: The Digital Trinocular Microscope with 2MP USB Camera is a trinocular LED microscope with up to 1000x magnification and a 2MP USB camera for picture and video output during lessons.
Last updated: October 2026
Key Features
- Binocular eyepieces for direct viewing, with a camera for classroom display.
- Up to 1000x magnification with 4X, 10X, 40X and 100X objectives.
- 2MP USB 2.0 camera for still pictures and video.
- 3W X-LED illumination with adjustable intensity.
- Coaxial, graduated coarse and fine focusing.
Technical Specifications
| Specification | Value |
|---|---|
| Magnification | Up to 1000x |
| Eyepiece | WF10X/18 mm |
| Objectives | 4X, 10X, 40X, 100X |
| Illumination | 3W X-LED, adjustable intensity |
| Camera | 2MP, USB 2.0, picture and video |
| Video frame rate | 5 fps at 1600 x 1200; 7.5 fps at 1280 x 1024; 22 fps at 640 x 480 |
| Camera fits eyepiece tubes | 23 mm, 30 mm and 30.5 mm |
| Software compatibility | Windows Vista, 7, 8 and 10, 32-bit or 64-bit |
| Voltage | 240 V, 50/60 Hz |
| Dimensions | 370 mm H x 235 mm W x 290 mm D |
About This Product
Students use the binocular eyepieces for direct observation, while teachers connect the camera for classroom display, image capture and video without interrupting the microscope setup. The kit includes the microscope, camera, removable mini USB cable, power supply, dust cover, instruction manual and software or driver media. It suits prepared slides, cells, tissues, microorganisms and stained specimens.
Frequently Asked Questions
Q1. Which computers does the camera software support?
Windows Vista, Windows 7, Windows 8 and Windows 10, in 32-bit or 64-bit versions.
Q2. What magnification does the microscope reach?
Up to 1000x, using the WF10X/18 mm eyepiece with the 4X, 10X, 40X and 100X objectives.
Related: Microscopes & Accessories, Student Compound Microscope, Projection Microscope.
For a quotation on the Digital Trinocular Microscope with 2MP USB Camera, contact School Equipments India.
