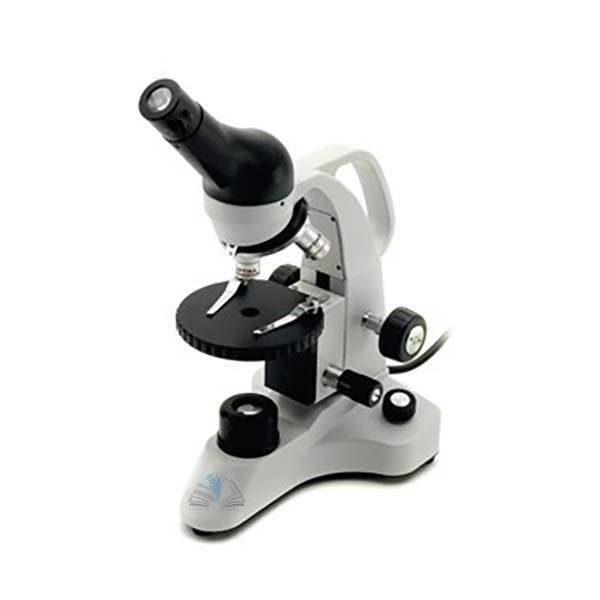

Monocular LED Microscope 400x
Product Code : EL-MA-10548
Quick Answer: The Monocular LED Microscope 400x is a rechargeable monocular school microscope with 4x, 10x and 40x achromatic objectives, a WF10x/16 mm eyepiece and adjustable white LED lighting.
Last updated: October 2026
Key Features
- Total magnification 40x, 100x and 400x
- Anti-fungal treated achromatic objectives 4x, 10x and 40x (telescopic)
- Removable 16 mm eyepiece accepts an eyepiece reticule or micrometer
- White LED with adjustable brightness, powered by rechargeable batteries
- 360° rotating head with 45° inclined eyepiece tube
- Separate coarse and fine focusing with focus tension adjustment
Technical Specifications
| Specification | Value |
|---|---|
| Total magnification | 40x, 100x, 400x |
| Eyepiece | WF10x/16 mm |
| Objectives | Achromatic 4x, 10x, 40x (telescopic), anti-fungal treated |
| Head | 360° rotating, 45° inclined eyepiece tube |
| Nosepiece | Triple, rotating in both directions, click locking |
| Stage | Movable, 90 mm diameter, 5 mm moving range, slide clips |
| Illumination | White LED, brightness control, rechargeable battery |
| Voltage | 220 V, 50 Hz |
| Dimensions | 315 x 140 x 182 mm (H x W x D) |
| Weight | 2.8 kg |
| Supplied with | Rechargeable batteries, power supply, dust cover, instruction manual |
About This Product
This school microscope suits school microscope work from introductory use onwards, with easy-to-use controls. Because the LED runs on rechargeable batteries, it can be used in practically any situation. Removing the eyepiece allows a reticule or micrometer to be fitted for measuring specimens, and the objectives click into place on the triple nosepiece. The Monocular LED Microscope 400x is available for supply within India and for export to South Africa, North Macedonia, Sudan, Australia, Cabo Verde and Barbados.
Frequently Asked Questions
Q1. Can the microscope be used to measure specimens?
Yes. The 16 mm eyepiece can be removed so that an eyepiece reticule or eyepiece micrometer can be inserted.
Q2. Does it need a mains supply to work?
No. The white LED runs on rechargeable batteries, so the microscope can be used in practically any situation. A power supply is included.
Related: Microscopes & Accessories, 100FX Monocular LED Microscope 400x, Microscope Dust Cover, Magnifier - 38mm 4X.
For a quotation on the Monocular LED Microscope 400x, contact School Equipments India.
