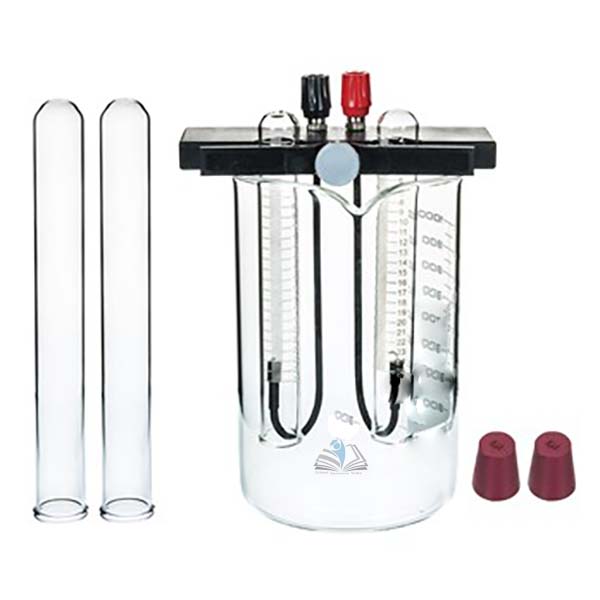

Water Electrolysis Apparatus
Product Code : EL-GPA-11635
Quick Answer: The Water Electrolysis Apparatus uses platinum electrodes on a non-conducting support to decompose water and other conductive liquids by direct current, with two clips for gas-collecting test tubes.
Last updated: October 2026
Key Features
- Platinum electrodes with insulated connecting rods to binding posts
- Non-conducting support that rests across a battery jar or 1L beaker
- Two clips, each holding an inverted test tube to trap the gases
- Runs from a 6V battery or 10V DC power supply
- Relative gas volumes can be estimated
- Battery jar or beaker not included
Technical Specifications
| Specification | Value |
|---|---|
| Electrodes | Platinum |
| Support | Non-conducting support with binding posts |
| Tube holding | Two clips, each holding an inverted test tube |
| Power | 6V battery or 10V DC power supply |
| Vessel | 1L beaker or battery jar (not included) |
About This Product
The support is placed across the top of the beaker or jar, the test tubes are filled, inverted and held in the clips, and the binding posts are connected to the power supply. As current passes, the gaseous products collect in the tubes so that their relative volumes can be compared. Export supply of the Water Electrolysis Apparatus can be arranged to laboratories and schools in Serbia, Zambia, Kuwait, Turkey, Iceland and Botswana.
Frequently Asked Questions
Q1. What power supply does it need?
A 6V battery or a 10V DC power supply.
Q2. Is a beaker included?
No. The support rests across a battery jar or 1L beaker, which is not included.
Related: Gas Preparation & Analysis, Salt Bridge, Replacement Electrode Checker Plus.
For a quotation on the Water Electrolysis Apparatus, contact School Equipments India.
