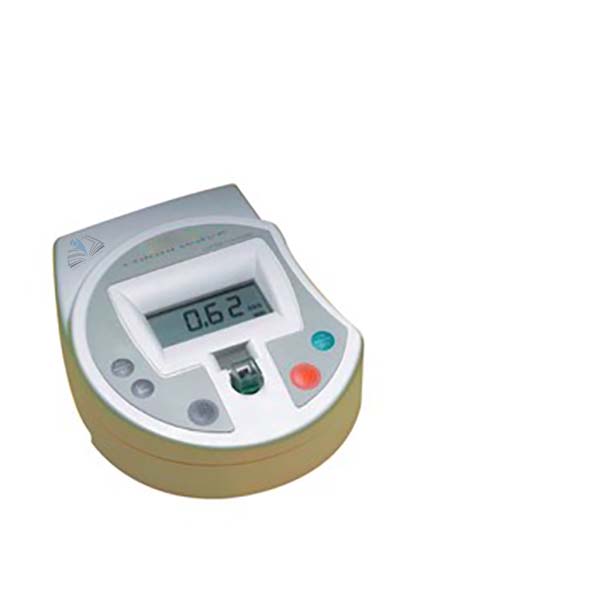

Colorimeter
Product Code : EL-ME-11382
Quick Answer: The Colorimeter is a compact visible-range instrument with eight filters covering 440-680 nm, reading absorbance or percentage transmission from 10 mm cuvettes or 16 mm diameter test tubes.
Last updated: October 2026
Key Features
- Eight filters held in an integral filter wheel; the filters can be removed if required
- Absorbance or percentage transmission readout
- Takes standard or semi-micro 10 mm pathlength cuvettes, or 16 mm diameter test tubes
- Kinetics mode for rates of reaction, with output to PC, chart recorder or printer
- Drain hole in the cell compartment; no lid needed
- Lamp is on only during the measurement cycle
Technical Specifications
| Specification | Value |
|---|---|
| Type | Visible |
| Wavelength range | 440 - 680 nm |
| Bandwidth | 40 nm |
| Lamp source | Tungsten halogen |
| Photometric range | -0.3 to 1.99A, 0 - 199%T |
| Photometric accuracy | <+/- 0.05A at 1A |
| Cuvette holder | 10 mm (accepts 16 mm test tubes) |
| Output | Print or export to PC |
| Power requirement | 110-220V, 50/60Hz, 20VA (power lead supplied) |
| Dimensions | 180 x 150 x 60 mm |
| Weight | 0.5 kg |
About This Product
Designed for use in schools and colleges, this lightweight colorimeter has a large display and is simple to set up. The choice of absorbance or percentage transmission readout allows the fundamentals of colorimetry to be explained, and the kinetics mode supports the study of reaction rates. A drain hole at the bottom of the cell compartment stops spillages from affecting the instrument.
Frequently Asked Questions
Q1. Which cuvettes or tubes can be used for measurement?
Standard or semi-micro cuvettes with a 10 mm pathlength, or test tubes of 16 mm diameter.
Q2. What does the kinetics mode do?
It permits the study of rates of reaction, and results can be output to a PC, chart recorder or printer.
Related: Measuring Equipment, Colorimeter set, S-Range Digital Colorimeter - 240V.
For a quotation on the Colorimeter, contact School Equipments India.
