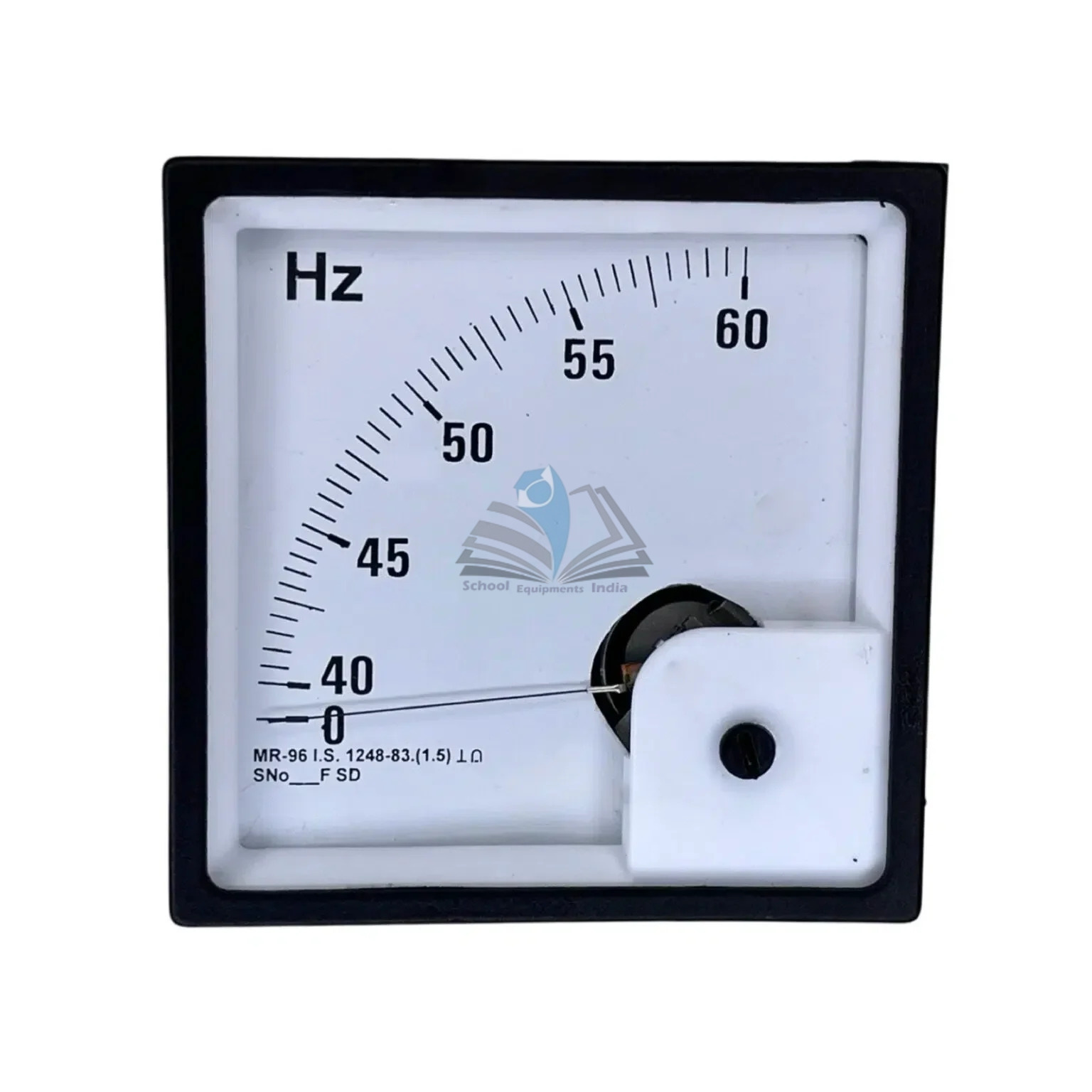

Analog Frequency Meter
.jpg)
Product Code : SCL-EE-12307
Quick Answer: The Analog Frequency Meter is an electrical measuring instrument that indicates the frequency of an alternating-current circuit in hertz on an analog scale.
Last updated: October 2026
Key Features
- Indicates AC frequency in hertz.
- Analog scale gives practice in direct meter reading and scale interpretation.
- Teaches frequency, hertz, alternating current and electrical measurement.
- Used with suitable AC sources and power supply equipment.
About This Product
The meter is connected only to the correct AC source or circuit as directed by the teacher. Once the indication has stabilised, students read the frequency in hertz, record it and compare it with the expected frequency of the source. The supply is switched off before any connection is removed or changed. The instrument helps explain why AC systems are described in hertz. The Analog Frequency Meter is available for supply within India and for export to Japan, Dominican Republic, Central African Republic, Laos and Mauritania.
Frequently Asked Questions
Q1. How is a reading taken?
Switch on the circuit, allow the indication to stabilise, then read the frequency in hertz on the analog scale and compare it with the expected frequency of the source.
Related: Electricity & Electromagnetism, Portable Analog Wattmeter.
For a quotation on the Analog Frequency Meter, contact School Equipments India.
