Axial Search Coil

Axial Search Coil

Product Code : EL-EE-10894

Quick Answer: The Axial Search Coil is a 5000-turn coil of very fine copper wire on a fibreglass board, mounted with its axis parallel to the board, for finding field strength or flux density in air gaps.

Last updated: October 2026

Key Features

  • 5000 turns of very fine copper wire wound on a bobbin
  • Coil axis parallel to the axis of the board
  • Electrically insulated, non-magnetic fibreglass board
  • Two 4 mm socket terminals
  • Takes an a.c. or d.c. signal

Technical Specifications

SpecificationValue
Coil turns5000
Coil orientationAxis parallel to board axis
BoardFibreglass, non-magnetic
TerminalsTwo 4 mm socket terminals

About This Product

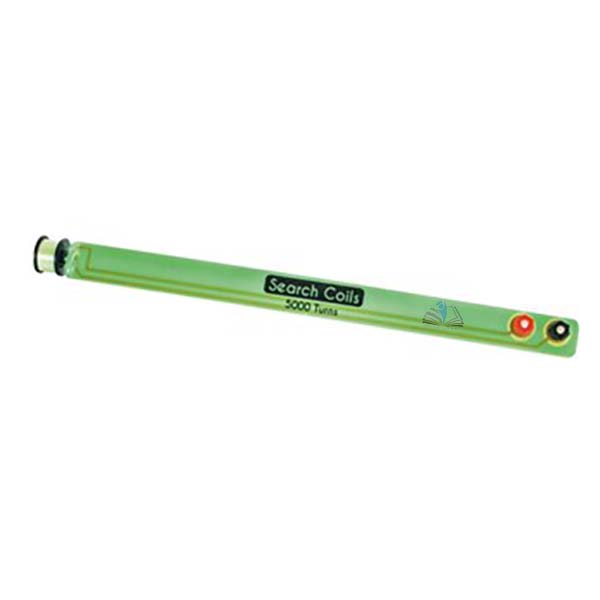

This axial coil is used to determine field strengths or flux density inside the air gap of magnets or solenoids. An a.c. or d.c. signal can also be applied to it to study the effect of interacting magnetic fields. The bobbin sits at one end of the board and the terminals at the other. A Lateral Search Coil is sold separately.

Frequently Asked Questions

Q1. How is the coil oriented on its board?
The coil is mounted with its axis parallel to the axis of the PCB board.

Related: Electricity & Electromagnetism, Axial and Lateral Search Coils, Basic Student Meter.

For a quotation on the Axial Search Coil, contact School Equipments India.
