Digital Coulombmeter 0-1999nC
Product Code : EL-EE-10879
Quick Answer: The Digital Coulombmeter 0-1999nC measures electric charge from -1999 to +1999 nC on a 3½-digit display, giving a quantitative alternative to the gold-leaf electroscope.
Last updated: October 2026
Key Features
- 3½-digit display reads charge from -1999 to +1999 nC
- 25 mm collecting plate, charged by contact or by induction
- Two 4 mm terminals on top, for ground and the charging body
- Reset button discharges the unit
- Internal capacitance of 1 µF; maximum p.d. between terminals 100 V
- Runs on an internal PP3 battery, sold separately
Technical Specifications
| Specification | Value |
|---|---|
| Range | 0-1999 nC |
| Display | 3½ digit |
| Accuracy | ±10% of F.S.D. |
| Internal capacitance | 1 µF |
| Maximum potential difference | 100 V |
| Overload capability | 100 V |
| Collecting plate | 25 mm |
| Dimensions | 95 mm x 90 mm x 50 mm |
| Power | Internal PP3 battery (not included) |
About This Product

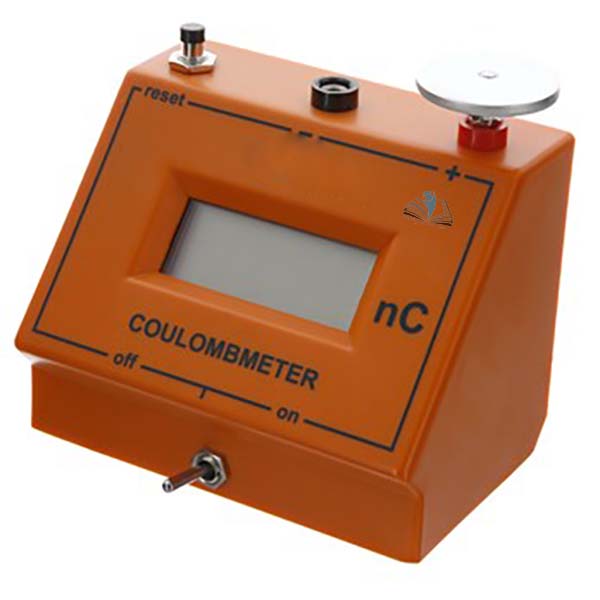

This unit offers a quantitative alternative to the gold-leaf electroscope, showing charge as a number in nanocoulombs. A charged body is touched to the 25 mm collecting plate or brought up close to it, and the reading appears on the display. The two 4 mm terminals on top connect to ground and to the charging body, and the reset button discharges the unit whenever required. Export supply of the Digital Coulombmeter 0-1999nC can be arranged to laboratories and schools in Cameroon, Solomon Islands, South Sudan, United Arab Emirates, Latvia and Argentina.
Frequently Asked Questions
Q1. Can the coulombmeter be charged without contact?
Yes. As well as by contact, it can be charged by induction by bringing a charged body up to the 25 mm collecting plate.
Q2. Is a battery included?
No. It runs on an internal PP3 battery, which is not included but is available to purchase separately.
Related: Electricity & Electromagnetism, Dual Purpose Electroscope With Scale, Digital Milliammeter - 0 to 199.9mA d.c..
For a quotation on the Digital Coulombmeter 0-1999nC, contact School Equipments India.
