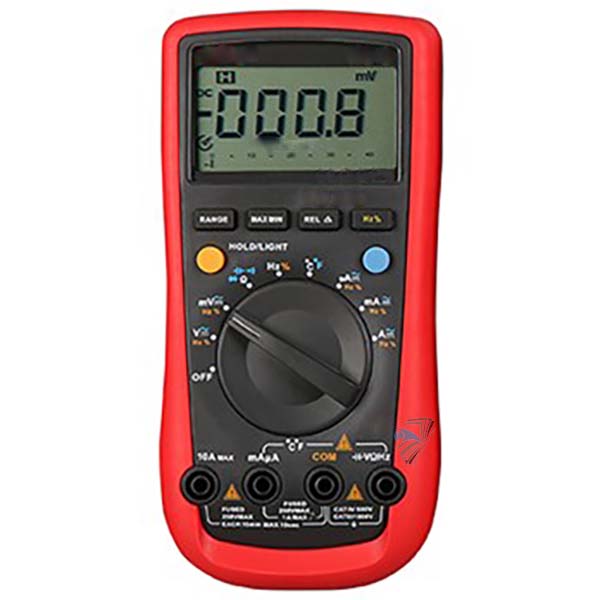

Digital Electronic Multimeter, Pocket sized
Product Code : EL-EE-10916
Quick Answer: The Digital Electronic Multimeter, Pocket sized is an auto-ranging meter for current, voltage, resistance, capacitance and frequency, with an RS-232 interface for showing readings on a PC.
Last updated: October 2026
Key Features
- Selectable auto or manual ranging
- Fused 10 A range
- Frequency, capacitance, diode test and continuity buzzer
- Data hold, full icon display and low battery display
- RS-232 interface for viewing readings on a PC
- Supplied with shrouded safety test leads, interface cable, software CD and PP3 battery
Technical Specifications
| Specification | Value |
|---|---|
| d.c. current | 400 µA to 10 A, 6 ranges |
| a.c. current | 400 µA to 10 A, 6 ranges |
| d.c. voltage | 400 mV to 1000 V, 5 ranges |
| a.c. voltage | 4 V to 750 V, 4 ranges |
| Capacitance | 40 nF to 100 µF, 5 ranges |
| Resistance | 400 Ω to 40 MΩ, 6 ranges |
| Frequency | 10 Hz-40 MHz |
| Diode test | 1 mV resolution |
| Accuracy | 0.8 to 4% depending on range |
| Power | 9 V PP3 battery (included) |
| Dimensions | 177 x 85 x 40 mm |
| Mass | 340 g approx. |
About This Product
This multimeter covers d.c. and a.c. current up to 10 A, d.c. voltage up to 1000 V and a.c. voltage up to 750 V, along with resistance, capacitance, frequency and diode tests. Using the RS-232 interface cable and the supplied operating software, readings can be shown on a PC in digital or graphical format. Accuracy is 0.8 to 4%, depending on the range selected.
Frequently Asked Questions
Q1. Can the readings be shown on a computer?
Yes. The RS-232 interface cable and the operating software on the supplied CD display the meter readings on a PC in digital or graphical format.
Q2. Is a battery included?
Yes. The meter runs on a 9 V PP3 battery, which is included.
Related: Electricity & Electromagnetism, Energy Stick.
For a quotation on the Digital Electronic Multimeter, Pocket sized, contact School Equipments India.
