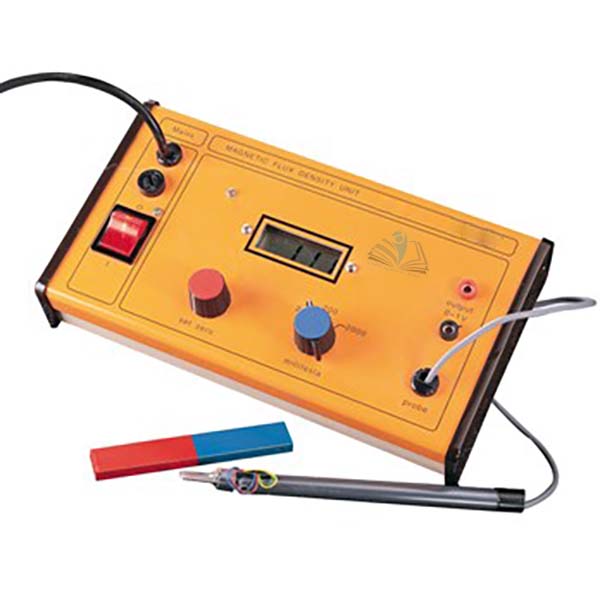

Digital Magnetic Flux Density
Product Code : EL-EE-10906
Quick Answer: The Digital Magnetic Flux Density unit measures magnetic field strength directly, up to 1999 mT on three ranges, using a factory-calibrated Hall-effect probe on a rotatable ball and socket head.
Last updated: October 2026
Key Features
- Hall-effect probe, permanently attached and factory calibrated to the meter
- Probe on a rotatable ball and socket head
- Ranges of 0-19.99, 0-199.9 and 0-1999 mT, selected by a 3-position switch
- 3½-digit LCD with 12 mm digits and automatic decimal point
- Multi-turn set-zero control to compensate for background fields
- 0-1 V output at 4 mm sockets for a data-logger
Technical Specifications
| Specification | Value |
|---|---|
| Measurement ranges | 0-19.99 mT, 0-199.9 mT, 0-1999 mT |
| Display | 3½ digit LCD, 12 mm digit height |
| Probe | Hall-effect, factory calibrated |
| Output | 0-1 V, proportional to reading |
| Data-logger input resistance | Greater than 100k ohm |
| Power | Mains, 250 mA anti-surge fuse |
| Dimensions | 240 mm x 135 mm x 65 mm |
| Mass | 1.5 kg |
About This Product
The meter investigates the fields around magnets and coils quantitatively and immediately, without indirect methods such as flux coils and ballistic galvanometers. On the most sensitive range it can measure the Earth's magnetic field, and the set-zero control compensates for unwanted background fields. Alongside the LCD reading, a 0-1 V signal proportional to the reading is available for a data-logger. Export supply of the Digital Magnetic Flux Density can be arranged to laboratories and schools in Colombia, Togo, Guinea-Bissau, Saint Vincent and the Grenadines, Syria and Samoa.
Frequently Asked Questions
Q1. Can it measure the Earth's magnetic field?
Yes. On the most sensitive range, the Earth's magnetic field can be measured.
Q2. Can the readings be sent to a data-logger?
Yes. A p.d. from 0-1 V, proportional to the reading, is available at 4 mm sockets for a data-logger with an input resistance greater than 100k ohm.
Related: Electricity & Electromagnetism, Eddy Current Kit, Demonstration Electric Motor.
For a quotation on the Digital Magnetic Flux Density, contact School Equipments India.
