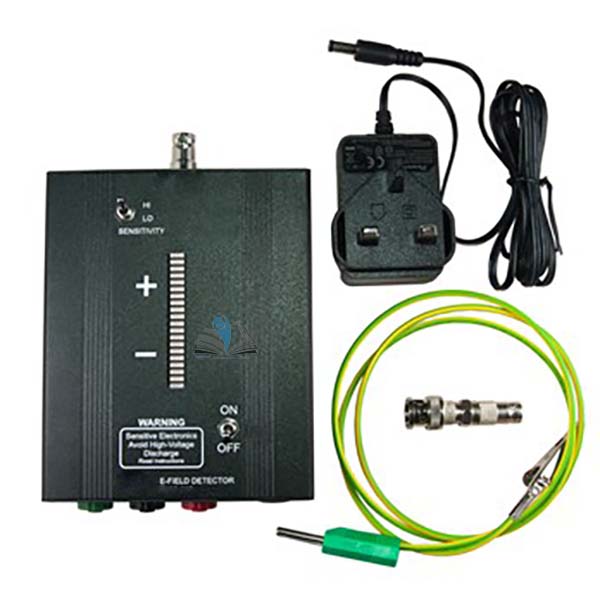

E-field Detector
Product Code : EL-EE-10910
Quick Answer: The E-field Detector is an electronic device that detects very small charges and their polarity, including charge at a distance, and shows the sign and size of the charge on an LED array.
Last updated: October 2026
Key Features
- Detects very small charges, their polarity, and charge at a distance
- LED array shows positive or negative charge and its size
- External voltmeter sockets for quantitative measurements
- Hi sensitivity 6-125 pC; Lo sensitivity 0.6-12.5 nC
- Instructions cover traditional experiments and new ways to look at charge
- Input voltage 24 V d.c., current draw 50 mA
Technical Specifications
| Specification | Value |
|---|---|
| Display range | Hi 6-125 pC; Lo 0.6-12.5 nC |
| Socket output range | 0-4.7 V (Hi 0-470 pC; Lo 0-47 nC) |
| Display resolution | Hi 6 pC; Lo 0.6 nC |
| Input voltage | 24 V d.c. |
| Current draw | 50 mA |
| Dimensions | 145 x 100 x 50 mm (excl. BNC nose) |
| Weight | 252 g |
About This Product
The detector shows whether a positive or negative charge has been created and in which direction the electrons have moved. Its LED array gives the sign and size of the charge, while the external voltmeter sockets provide an output for quantitative measurements. The included instructions cover traditional experiments as well as new ways to look at charge. Export supply of the E-field Detector can be arranged to laboratories and schools in Zambia, Chad, Libya, Bolivia and Zimbabwe.
Frequently Asked Questions
Q1. How do the Hi and Lo sensitivity settings differ?
Hi sensitivity displays 6-125 pC with a minimum resolution of 6 pC. Lo sensitivity displays 0.6-12.5 nC with a minimum resolution of 0.6 nC.
Q2. Can the detector give quantitative readings?
Yes. The external voltmeter sockets give 0-4.7 V, equivalent to 0-470 pC on Hi sensitivity or 0-47 nC on Lo sensitivity.
Related: Electricity & Electromagnetism, Eddy Current Kit.
For a quotation on the E-field Detector, contact School Equipments India.
