Electromagnet
Product Code : EL-EE-10882

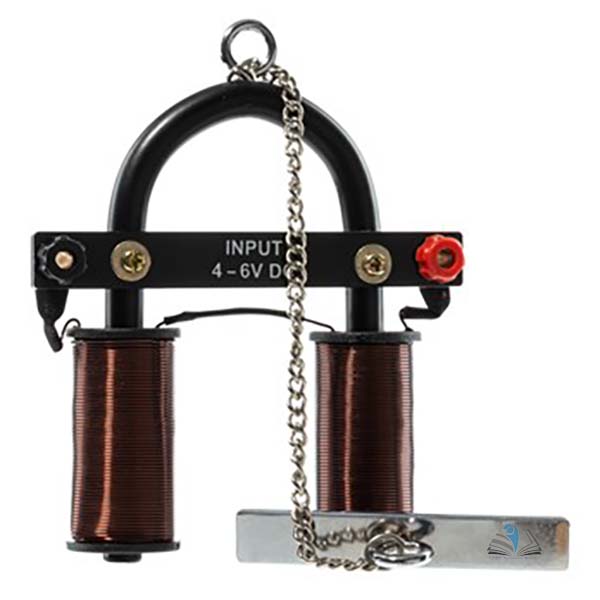

Quick Answer: The Electromagnet has a U-shaped soft iron core, 100 mm x 65 mm overall, with series-connected windings of 0.9 mm enamelled copper wire and 4 mm sockets.
Last updated: October 2026
Key Features
- U-shaped soft iron core formed from 16 mm diameter bar
- Windings of 0.9 mm enamelled copper wire on insulation bobbins, connected in series
- Core ends ground for magnetic contact with the armature, which is ground flat
- Winding resistance approximately 0.5 Ω
- Recommended current 5 A; maximum current 8 A
- About 75 N needed to pull the armature away at 1 A
Technical Specifications
| Specification | Value |
|---|---|
| Magnet type | U-shaped electromagnet |
| Core | Soft iron, 100 mm x 65 mm overall |
| Core bar diameter | 16 mm |
| Winding wire | 0.9 mm enamelled copper |
| Winding resistance | Approx. 0.5 Ω |
| Recommended current | 5 A |
| Maximum current | 8 A |
| Connections | 4 mm sockets |
About This Product
Passing current through the series-connected windings magnetises the U-shaped soft iron core, which then holds the flat-ground armature. With 1 A flowing, a force of about 75 N is needed to pull the armature away from the core. The recommended working current is 5 A, and the maximum is 8 A. The Electromagnet is available for supply within India and for export to Turkmenistan, Iran, Ghana, Morocco and Philippines.
Frequently Asked Questions
Q1. How strongly does the electromagnet hold its armature?
With 1 A through the windings, a force of about 75 N is required to pull the armature away from the core.
Q2. What current should the windings carry?
The recommended current is 5 A, and the maximum current is 8 A.
Related: Electricity & Electromagnetism, Rectangular Section Magnets, Chrome Steel - 100mm, Neodymium Magnet - 10mm x 10mm.
For a quotation on the Electromagnet, contact School Equipments India.
