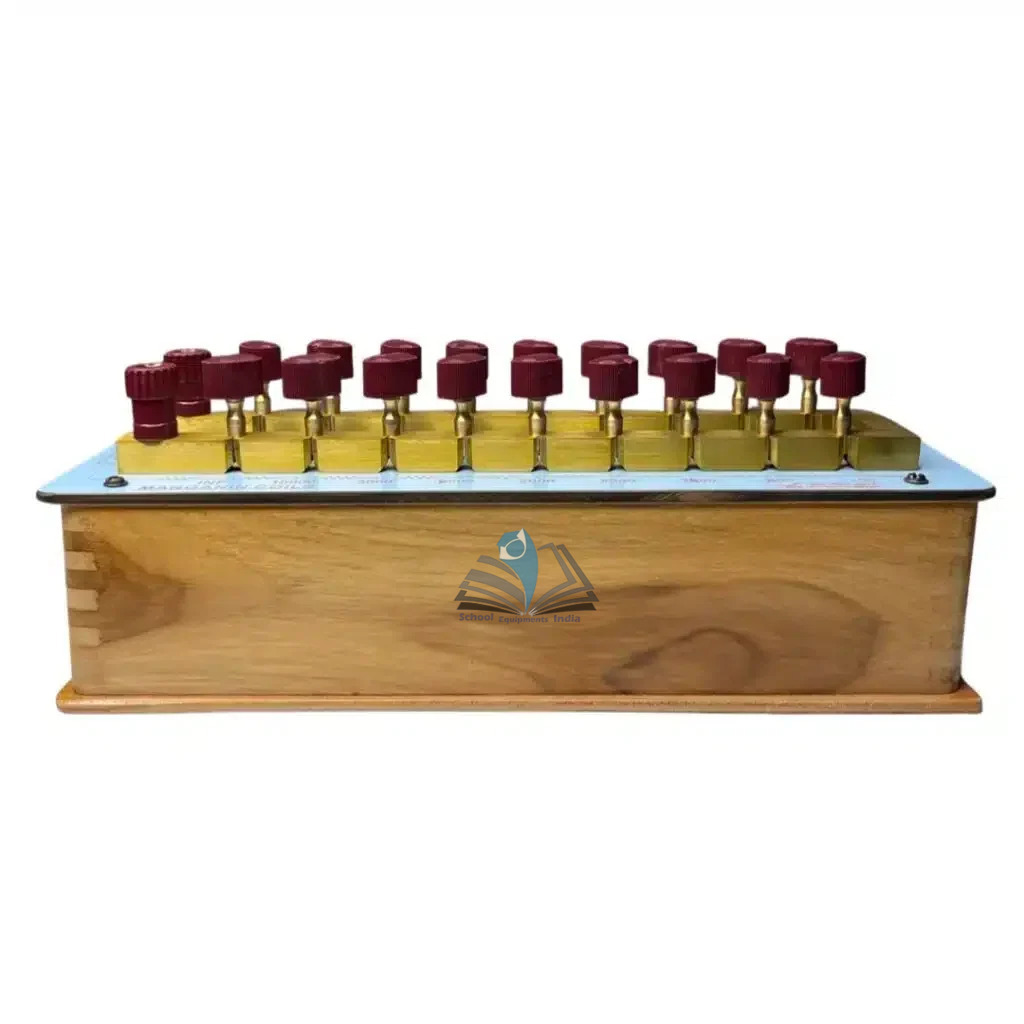

Quick Answer: The High Resistance Box 10000 Ohms introduces a known high-value resistance into a circuit, letting students see how a large resistance reduces current and use it in Ohm's law and Wheatstone bridge practicals.
Last updated: October 2026
Key Features
Stated capacity of 10000 ohms
Shows current falling as resistance increases
Supports Wheatstone bridge and resistance-comparison work where the method permits
Helps compare calculated and observed circuit behaviour
Input and output terminals, with resistance and rating details on the label
Technical Specifications
Specification
Value
Resistance capacity
10000Ω / 10000 ohms
Connections
Input and output terminals
Use
Low-voltage educational circuits
About This Product
The box suits low-current studies where a high resistance is needed. Students connect it with the supply off, select the required value, then switch on the low-voltage supply and record ammeter and voltmeter readings to compare with Ohm's law calculations. It is not to be overloaded or connected directly to mains. The High Resistance Box 10000 Ohms is available for supply within India and for export to Argentina, Vietnam, Poland, Cyprus and Central African Republic.
Frequently Asked Questions
Q1. When is a 10000-ohm resistance box used? When an experiment needs a high-value resistance, for example to keep current low or to compare resistances in a Wheatstone bridge set-up where the method permits.
