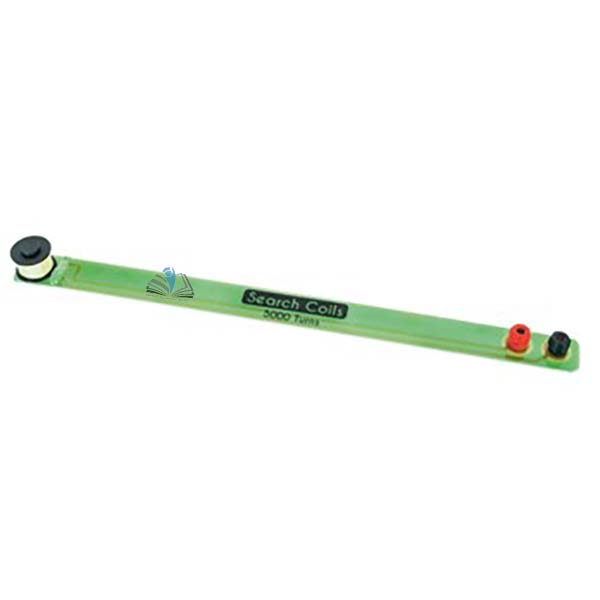

Lateral Search Coil
Product Code : EL-EE-10925
Quick Answer: The Lateral Search Coil determines field strength or flux density inside the air gap of magnets or solenoids, using 5000 turns of very fine copper wire set at 90 degrees to its fibreglass board.
Last updated: October 2026
Key Features
- Coil axis at 90 degrees to the axis of the board
- 5000 turns of very fine copper wire on a bobbin
- Fibreglass board, electrically insulated and non-magnetic
- Two 4 mm socket terminals at the opposite end
- Takes an a.c. or d.c. signal; a signal generator is also required
Technical Specifications
| Specification | Value |
|---|---|
| Coil turns | 5000 |
| Coil orientation | Axis at 90 degrees to board axis |
| Board | Fibreglass, electrically insulated, non-magnetic |
| Terminals | Two 4 mm socket terminals |
About This Product
The lateral coil is used to determine field strengths or flux density inside the air gap of magnets or solenoids. Applying an a.c. or d.c. signal lets the effect of interacting magnetic fields be studied, and a signal generator is also required for use. An Axial Search Coil is available separately. Export supply of the Lateral Search Coil can be arranged to laboratories and schools in Haiti, Kiribati, Guinea-Bissau, Honduras and Bulgaria.
Frequently Asked Questions
Q1. Is anything else needed to use the coil?
Yes. A signal generator is also required for use.
Related: Electricity & Electromagnetism, Magnet Kit.
For a quotation on the Lateral Search Coil, contact School Equipments India.
