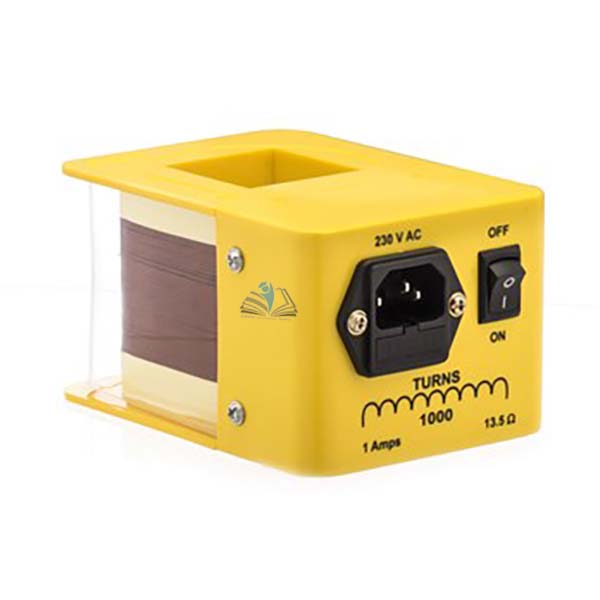

Mains Coil for Dissectible Transformer
Product Code : EL-EE-10931
Quick Answer: The Mains Coil for Dissectible Transformer is a 1000-turn coil for up to 230 V a.c. that powers the nail melting and Thomson's rings demonstrations with the Dissectible Transformer and Induction Accessory Set.
Last updated: October 2026
Key Features
- 1000 turns
- Input voltage 230 V a.c. maximum
- Current 1 A maximum
- Impedance 13.5 ohms
- Central aperture 40 mm x 40 mm; overall height 70 mm
Technical Specifications
| Specification | Value |
|---|---|
| Input voltage | 230 V a.c. (max) |
| Number of turns | 1000 |
| Central aperture | 40 mm x 40 mm |
| Overall height | 70 mm |
| Impedance | 13.5 ohms |
| Current | 1 A (max) |
About This Product
This coil is an accessory for the Dissectible Transformer. Used with the transformer and the Induction Accessory Set, it provides the power needed for the nail melting and Thomson's rings demonstrations. It takes up to 230 V a.c. and a current of no more than 1 A. Besides buyers across India, the Mains Coil for Dissectible Transformer can be exported to institutions in Mauritania, Uruguay, Papua New Guinea, Belize, Qatar and Kyrgyzstan.
Frequently Asked Questions
Q1. What is the mains coil used for?
With the Dissectible Transformer and the Induction Accessory Set, it provides the power for the nail melting and Thomson's rings demonstrations.
Related: Electricity & Electromagnetism, Induction Accessory Set, Magnetising and Demagnetising Coil.
For a quotation on the Mains Coil for Dissectible Transformer, contact School Equipments India.
