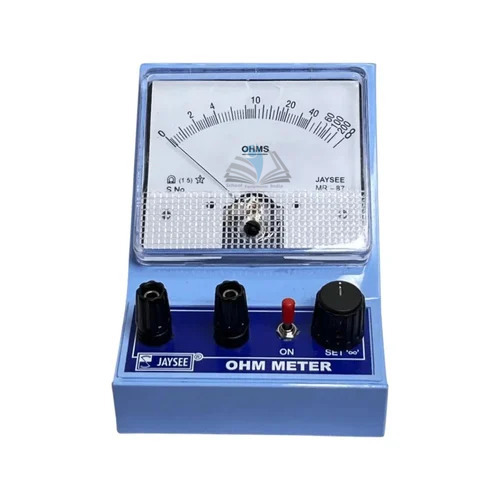

Ohm Meter Shunt Type Analog
.jpg)
Product Code : SCL-EE-12446
Quick Answer: The Ohm Meter Shunt Type Analog is an analogue resistance-measuring instrument in which the unknown resistance is connected in a shunt path across the meter circuit.
Last updated: October 2026
Key Features
- Demonstrates the shunt-type ohmmeter principle
- Analogue scale shows pointer deflection on a non-linear resistance scale
- Teaches zero adjustment and scale reading
- Used only on isolated, switched-off components
- Helps compare series-type and shunt-type ohmmeter operation
Technical Specifications
| Specification | Value |
|---|---|
| Measurement type | Electrical resistance measurement |
| Ohmmeter type | Shunt type analog |
| Instrument type | Resistance measuring instrument |
About This Product
The circuit or component is switched off and disconnected, the test leads are connected and the pointer is checked and zeroed where needed before the unknown resistor is measured. Students then compare their readings with known resistance values, which helps them understand non-linear analogue scale reading and supports Ohm’s law and circuit practicals.
Frequently Asked Questions
Q1. What does shunt type mean?
In a shunt-type ohmmeter the unknown resistance is connected in a parallel, or shunt, path across the meter circuit, rather than in series with it.
Related: Electricity & Electromagnetism, Digital Ohms Law Apparatus, Battery Eliminator (Socket Type).
For a quotation on the Ohm Meter Shunt Type Analog, contact School Equipments India.
