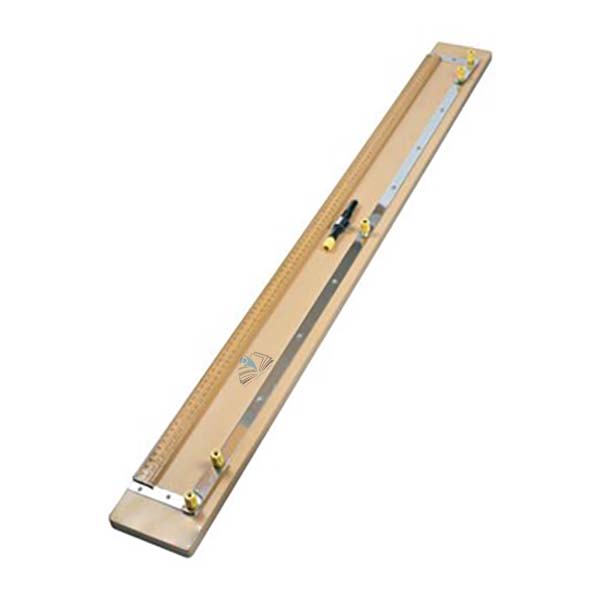

Quick Answer: The Wheatstone Bridge has 24 SWG constantan wire stretched along a scale in mm and cm, with broad, heavily plated brass strips and 4 mm socket terminals on a polished hardwood base.
Last updated: October 2026
Key Features
Broad, heavily plated brass strips
Polished hardwood base
Terminals with 4 mm sockets
24 SWG constantan wire stretched along the top of the scale
Scale marked in mm and cm
Length 1.13 m, width 80 mm, depth 50 mm
Technical Specifications
Specification
Value
Wire
24 SWG constantan
Scale
In mm and cm
Strips
Heavily plated brass
Base
Polished hardwood
Terminals
4 mm sockets
Dimensions
1.13 m x 80 mm x 50 mm
About This Product
The constantan wire runs along the top of a metre scale graduated in mm and cm, between broad brass strips that are heavily plated. The whole bridge is mounted on a polished hardwood base, and connections are made through terminals with 4 mm sockets. Besides buyers across India, the Wheatstone Bridge can be exported to institutions in Oman, Uruguay, Maldives, Suriname and Qatar.
