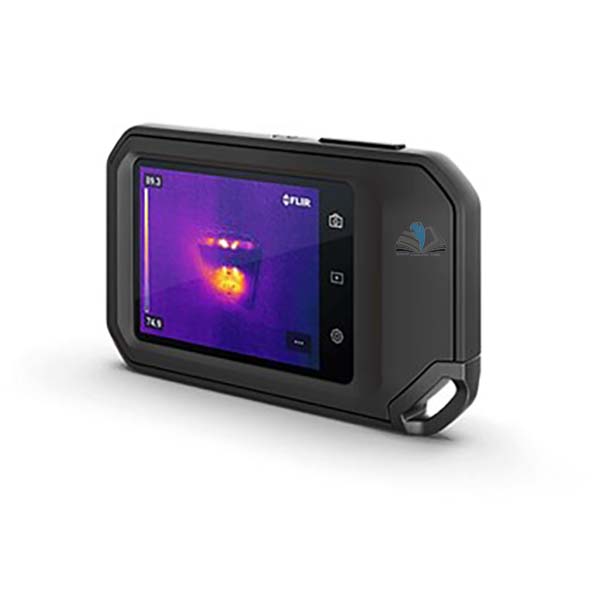

C3-X Infra-Red Thermal Imaging Camera
Product Code : EL-E-11065
Quick Answer: The C3-X Infra-Red Thermal Imaging Camera is a compact thermal camera with a 5MP visual camera, LED flashlight and 3.5-inch touchscreen that stores more than 5000 images with 14-bit measurement data.
Last updated: October 2026
Key Features
- Thermal camera, visual inspection camera and LED flashlight in one compact unit
- 3.5-inch (89 mm) integrated touchscreen with 640 x 480 pixel display resolution
- Infrared, visual, embossed-detail and picture-in-picture image modes
- Colour palettes: Iron, Grey, Rainbow and Rainbow HC
- Rechargeable built-in lithium ion battery with 4 hours operating time
- Wi-Fi, Bluetooth and USB-C connections, with direct image upload to cloud storage
Technical Specifications
| Specification | Value |
|---|---|
| Display resolution | 640 x 480 pixels |
| Screen size | 89 mm (3.5 in) |
| Digital camera | 5MP, fixed focus |
| Digital zoom | No |
| Image file format | Standard JPEG, 14-bit measurement data included |
| Image storage | >5000 images |
| Accuracy, 0 to 100°C | ±3°C (ambient 15 to 35°C, object above 0°C) |
| Accuracy, 100 to 300°C | ±3% (ambient 15 to 35°C) |
| Battery | 3.7V, 1800mAh rechargeable built-in lithium ion |
| Charging | USB-C (1A), 2 hours |
| Drop test | 2 m |
| Dimensions | 138 mm x 84 mm x 24 mm |
| Weight | 0.19 kg |
About This Product
The camera combines thermal and visual imaging. It can emboss visual details onto the thermal image or show the infrared area as a picture-in-picture on the visual image, with automatic or manual level and span adjustment. Images are saved as standard JPEG files with measurement data and can be uploaded over Wi-Fi. It is designed as an inspection tool for building, facilities maintenance, HVAC/R, electrical repair and other troubleshooting work. Export supply of the C3-X Infra-Red Thermal Imaging Camera can be arranged to laboratories and schools in Burkina Faso, Lesotho, Equatorial Guinea, New Zealand, Fiji and Mexico.
Frequently Asked Questions
Q1. How accurate are the temperature readings?
Accuracy is ±3°C from 0 to 100°C and ±3% from 100 to 300°C, at an ambient temperature of 15 to 35°C with the object above 0°C.
Q2. How long does the battery last?
The built-in lithium ion battery gives 4 hours of operating time, charges in 2 hours over USB-C and has a charge life of more than 500 cycles.
Related: Energy, Wood and Metal Cylinder.
For a quotation on the C3-X Infra-Red Thermal Imaging Camera, contact School Equipments India.
