Wind Turbine Kit
Product Code : EL-E-11063
Quick Answer: The Wind Turbine Kit is a working model of a wind turbine that generates electricity indoors with a fan or outdoors in the wind, with 2, 3 or 6 blade options and three gear ratios.
Last updated: October 2026
Key Features
- Experiment with two, three or six blades and adjustable blade angles
- Three gear ratios (3:1, 1:1, 1:3) to explore gearing and power output
- Dual-scale analogue voltmeter, 0-3 V and 0-15 V
- Powers the motor, buzzer and LED modules
- Turns automatically to face into the wind
- Desk-mounted tower with a clamp to suit an 18-30 mm tabletop
Technical Specifications
| Specification | Value |
|---|---|
| Blade diameter | 450 mm |
| Blade options | 2, 3 or 6 |
| Height | 800 mm |
| Gear ratios | 3:1, 1:1, 1:3 |
| Generator voltage | 0-3 V |
| Voltmeter range | 0-3 V, 0-15 V |
| Clamp size | To suit 18-30 mm tabletop |
| Storage case | 490 x 300 x 110 mm |
| Total weight | 1250 g |
About This Product
Students change the number of blades, adjust blade angles and switch between gear ratios, reading the output on the voltmeter each time. The generator can then power the motor, buzzer and LED modules. The kit fits renewable energy lessons from primary school through to university level, and its storage case keeps the components together. Besides buyers across India, the Wind Turbine Kit can be exported to institutions in Burundi, Liberia, Tajikistan, Somalia, Turkmenistan and Mongolia.
Frequently Asked Questions
Q1. What is in the kit?

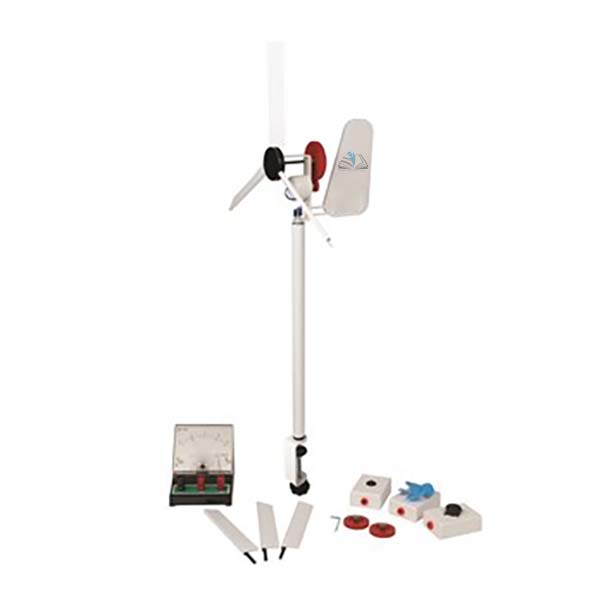

Motor, LED and buzzer modules; a dual-scale analogue voltmeter; gears (one 58-tooth, two 38-tooth, one 18-tooth) with a 1.5 mm hex key; turbine nacelle with generator and tailplane; desk-mounted tower; two 500 mm leads with 4 mm stackable plugs; a 6-way hub; six blades; instructions and a storage case.
Q2. Does it need outdoor wind?
No. It can generate electricity indoors with a fan as well as outdoors in the wind.
Related: Energy, Generator Unit - Hand Driven.
For a quotation on the Wind Turbine Kit, contact School Equipments India.
