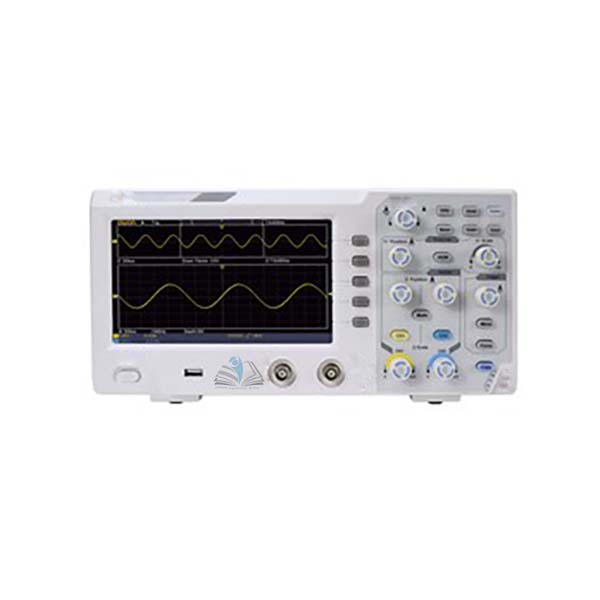

Quick Answer: The Digital Oscilloscope - Dual Channel, 20MHz is a 2-channel, 20 MHz digital oscilloscope with a 7 inch, 800 x 480 colour TFT LCD, 100 MSa/s sampling in dual channel and a 10K memory depth.
Last updated: October 2026
Key Features
20 MHz bandwidth with 100 MSa/s dual channel sampling
7 inch colour TFT LCD, 800 x 480 pixels
Memory depth of 10K
Maximum voltage of 400 V (peak)
Cursors for voltage difference and time difference
USB port for PC connection and USB host for a USB drive
Technical Specifications
Specification
Value
Bandwidth
20 MHz
Sampling
100 MS/s
Display
7" colour TFT, 800x480 pixels
Memory
10K
Maximum voltage
400V (peak)
Dimensions
301 x 152 x 70 mm
Weight
1.10 kg
About This Product
Measurements include Vpp, Vmax, Vmin, Vtop, Vamp, Vavg and Vrms, overshoot and preshoot, frequency, period, rise and fall times, rising and falling edge delays, positive and negative width and positive and negative duty. The oscilloscope is supplied with 2 probes, a USB cable, PC software, a power cable and a user manual.
Frequently Asked Questions
Q1. What is supplied with the oscilloscope? 2 probes, a USB cable, PC software, a power cable and a user manual.
