Light Box And Optical Set
Product Code : EL-W-11096
Quick Answer: The Light Box And Optical Set pairs a matt black light box with a 20 W halogen lamp and a set of mirrors, slit plates, colour filters, Perspex blocks and lenses for experiments in reflection, refraction and colour mixing.
Last updated: October 2026
Key Features
- Light box with 20 W halogen lamp and 0.75 m of twin flex
- Cylindrical convex lens in a sliding mount gives a parallel, convergent or divergent beam
- Triple aperture end for colour mixing, with adjustable hinged mirrors on the lateral apertures
- Vertical channels at every aperture hold slit plates and/or colour filters
- Set of eight colour filters and set of eight coloured cards
- Spare lamp and detailed instruction manual included; power supply not included
Technical Specifications
| Specification | Value |
|---|---|
| Lamp | 20W halogen |
| Flex | 0.75m twin flex |
| Light box dimensions | 170 mm x 90 mm x 55 mm |
| Finish | Matt black |
| Colour filters | Primary red, primary green, primary blue, cyan, violet, yellow, orange, magenta |
| Prisms | 60° x 60° x 60°, 90° x 60° x 30°, 90° x 45° x 45° |
About This Product

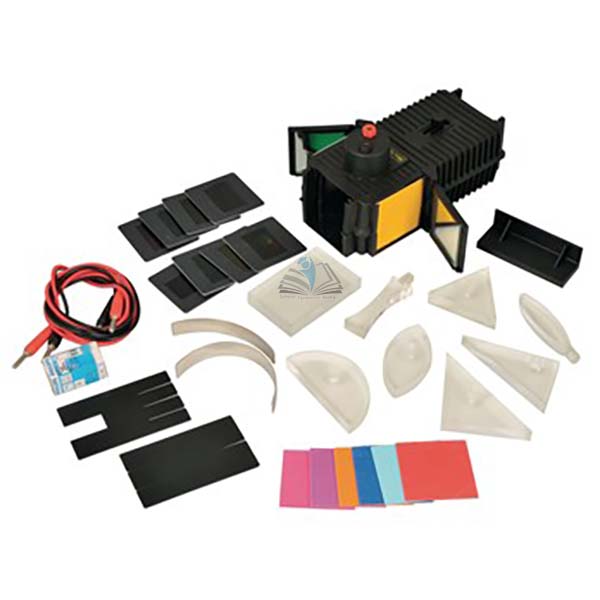

The lens end of the light box produces a beam that can be made parallel, convergent or divergent, while the triple aperture end and hinged mirrors are used for colour mixing. Accessories include parabolic and semi-circular curved metallised plastic mirrors, a plane glass mirror on a stand, black plastic slit plates, rectangular and semi-circular Perspex blocks, three Perspex prisms and cylindrical Perspex lenses: one double concave, one double convex of the same radius of curvature and one thick double convex. Export supply of the Light Box And Optical Set can be arranged to laboratories and schools in Saint Vincent and the Grenadines, Italy, Vietnam, Saudi Arabia, Burundi and Kiribati.
Frequently Asked Questions
Q1. Which prisms are in the set?
Three triangular Perspex prisms of 60° x 60° x 60°, 90° x 60° x 30° and 90° x 45° x 45°, along with rectangular and semi-circular Perspex blocks.
Q2. Is a power supply included?
No. The power supply is not included, but a spare lamp and an instruction manual are supplied.
Related: Waves, Mounted Colour Filter Set - Pack of 6, Glass Prism - 25mm, Optical Bench KIT.
For a quotation on the Light Box And Optical Set, contact School Equipments India.
