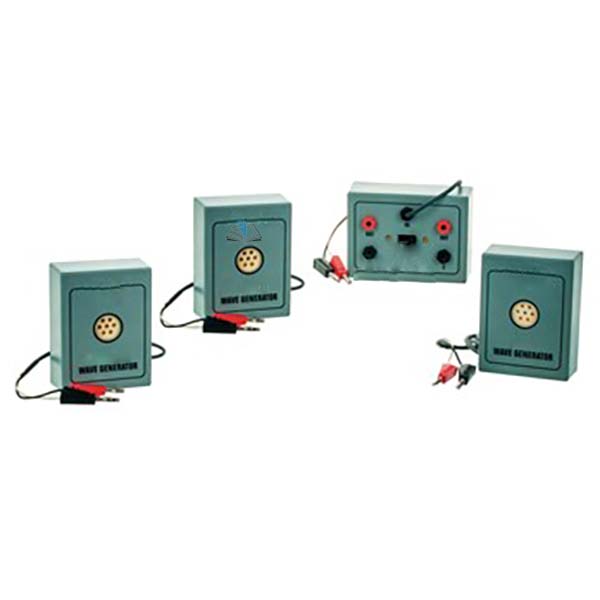

Quick Answer: The Sound Wave Demonstration Set is apparatus for investigating wave phenomena using sound, made up of three transducers that work as transmitters or receivers and one control box with a phase reversal switch.
Last updated: October 2026
Key Features
Three transducers, each usable as a transmitter or receiver
One control box with two pairs of 4 mm output sockets and a phase reversal switch
Transducers on 2 m screened leads with 4 mm plugs
Driven from a standard audio signal generator
Receivers can be used directly on the 5 mV input of an oscilloscope
Units housed in 100 mm x 75 mm x 40 mm boxes
Technical Specifications
Specification
Value
Transducers
Three
Control box
One
Box size
100mm x 75mm x 40mm
Transducer lead
2m screened, 4mm plugs
Control box input lead
1m screened, 4mm plugs
About This Product
The detailed equipment notes cover reflection and refraction, interference patterns in air, detection and measurement of phase differences in a signal received by two receivers, and measurement of wavelength using the phase difference between transmitter and receiver. Export supply of the Sound Wave Demonstration Set can be arranged to laboratories and schools in Fiji, Central African Republic, Iceland, São Tomé and Príncipe and Malaysia.
Frequently Asked Questions
Q1. Can the receivers connect straight to an oscilloscope? Yes. Their sensitivity as receivers allows them to be used directly on the 5 mV input of an oscilloscope.
