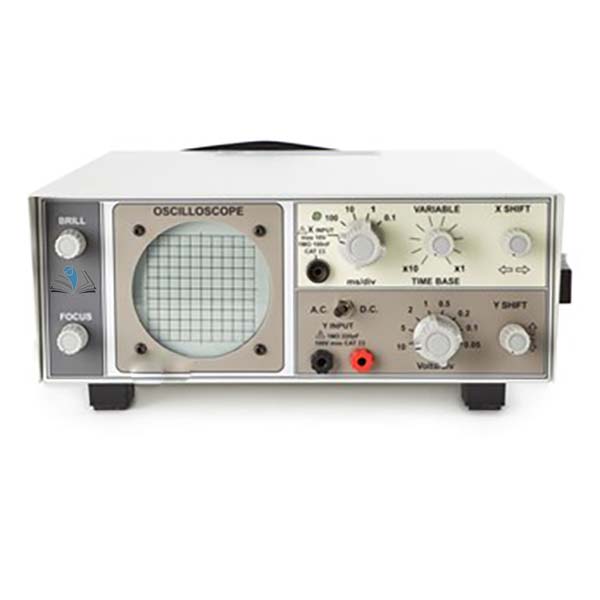

Quick Answer: The Student Oscilloscope - Single Channel, 20kHz is a single channel oscilloscope with a simplified control layout for student operation, permanent triggering and a 70 mm flat screen marked in 0.5 cm squares.
Last updated: October 2026
Key Features
Flat screen 70 mm across the diagonal, with a 10 x 10 graticule of 0.5 cm squares
8 switched gain settings
Time base ranges of 1, 10, 100 or 1000 ms across the screen, with variable x 1 to x 10 control
Y input direct or through an internal capacitor to block a d.c. component
Steel case with 1.8 m mains cable, carrying handle that doubles as a tilt stand, and cable wraps at the rear
On/off switch with indicator LED
Technical Specifications
Specification
Value
Y amplifier
FET input, 1 MΩ, d.c. to 10 kHz
X amplifier
1 MΩ, d.c. to 100 kHz
Sync input
1 MΩ, triggering at 20 mV
Screen
70 mm diagonal, flat
Size
245 x 310 x 105 mm
Mass
3.8 kg
About This Product
Focus, brilliance, X shift and Y shift controls set the position and nature of the trace. At the slowest time base setting the spot takes 10 s to cross the screen, which suits slow analogue computing investigations. With the time base switched off, the X input p.d. controls the horizontal position of the spot, for example to display Lissajous figures. A student audio signal generator is not included.
Frequently Asked Questions
Q1. Why does the trace take a moment to settle after moving it? The start of the spot is synchronised automatically to the positive-going edge of the Y input, so the trace may take about 1 s to settle if the Y position is altered.
