Quick Answer: The Smoothing Unit reduces the ripple from non-regulated power supplies using a 0.1H inductor and two 2200µF capacitors, giving typically 1% ripple at 12V and 3A.
Last updated: October 2026
Key Features
0.1H inductor
Two 2200µF capacitors
Keeps output smooth while high currents are drawn
Typical ripple of 1% with a 12V, 3A supply
Technical Specifications
Specification
Value
Inductor
0.1H
Capacitors
Two 2200µF
Typical ripple
1% with a 12V, 3A supply
Dimensions
175 x 190 x 298mm (W x D x H)
Mass
4.9kg
About This Product

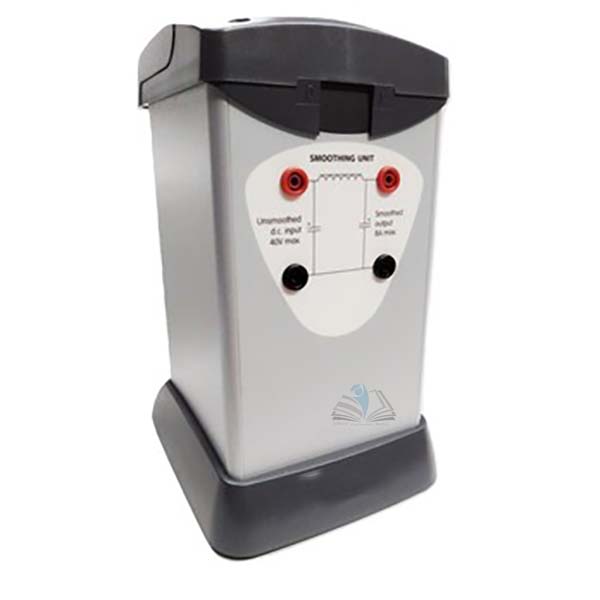

Connected after a non-regulated supply, this unit filters the output so that experiments receive a much steadier voltage. It holds that smoothing even when high currents are drawn. The case is 175mm wide and 298mm high, and its depth is 206mm including cable clips. The Smoothing Unit is available for supply within India and for export to Angola, Eritrea, Zimbabwe, Lithuania, South Africa and Burkina Faso.
