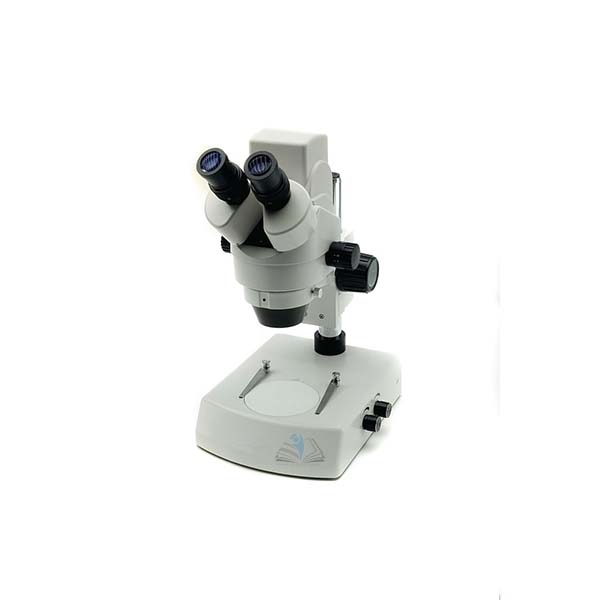

Digital Stereo Microscope 45x
Product Code : EL-MA-10590
Quick Answer: The Digital Stereo Microscope 45x is a binocular zoom stereo microscope with a built-in 1.3MP USB camera, halogen incident and transmitted lighting and a 100 mm working distance, made for users who want to record their investigations.
Last updated: October 2026
Key Features
- Par-focal achromatic 1x objective with 0.7x to 4.5x zoom
- Binocular head, 360° rotating, 45° inclined, dioptre adjustment on both eyepieces
- Built-in camera: 1280 x 1024 pixels (1.3Mpx) over USB 2.0
- Incident and transmitted halogen illumination (12V/15W) with adjustable intensity and incident angle
- Black/white contrast disc and semi-transparent plastic stage disc
- Supplied with power supply, 1.8M USB cable, dust cover and instruction manual
Technical Specifications
| Specification | Value |
|---|---|
| Head | Binocular, 360° rotating, 45° inclined |
| Interpupillary adjustment | 51-75 mm |
| Objective | Par-focal achromatic 1x, zoom 0.7x to 4.5x |
| Working distance | 100 mm |
| Nosepiece | Turret type |
| Focusing | Rack and pinion, pair of knobs |
| Illumination | Halogen 12V/15W, incident and transmitted |
| Power supply | External, 110/220V, 50/60Hz, 1A, max. power 38W |
| Camera resolution | 1280 x 1024 pixels (1.3Mpx), 5:4 |
| Camera sensor | 1/3" CMOS, 5.2 x 5.2 µm pixels |
| Frame rate | 15fps (1280 x 1024), 55fps (640 x 480), 142fps (320 x 240) |
| Exposure time | 15s - 1/1500s |
About This Product
This is a full stereo microscope with an added digital camera, so specimens can be examined through the eyepieces and documented at the same time. The camera works with continuous auto white balance and auto exposure, has a 6.67 x 5.33 mm imaging area, 44 dB signal-to-noise ratio and 71 dB dynamic range. Spare halogen bulbs for both light paths and a stage micrometer are offered separately. Besides buyers across India, the Digital Stereo Microscope 45x can be exported to institutions in Georgia, Bhutan, Lithuania, Madagascar and Cambodia.
Frequently Asked Questions
Q1. Does the camera need a C-mount adapter?
No. The camera is built in, and a C-mount lens adapter is not used.
Q2. What lighting does the microscope have?
Incident and transmitted illumination from 12V/15W halogen bulbs, with adjustable intensity; the angle of the incident illuminator can also be changed.
Related: Microscopes & Accessories, Halogen Bulb 12V/15W, Microscope Tablet with Camera.
For a quotation on the Digital Stereo Microscope 45x, contact School Equipments India.
