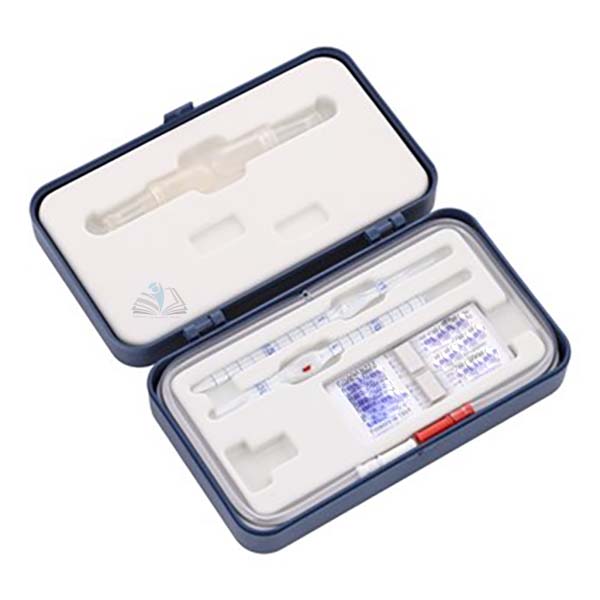

Haemocytometer, Improved Neubauer Pattern
Product Code : EL-MA-10570
Quick Answer: The Haemocytometer, Improved Neubauer Pattern is a moulded glass counting chamber for estimating the number of particles in a suspension, such as red and white blood cells, bacteria or yeast cells.
Last updated: October 2026
Key Features
- Moulded from thermal and shock resistant glass
- Two counting grids separated by a central trough
- Each grid divided into 400 squares of 0.05 x 0.05 mm
- With the coverslip in place, 2.5 × 10⁻⁴ mm³ lies over each square
- Supplied with 2 special coverslips and 2 dilution pipettes
Technical Specifications
| Specification | Value |
|---|---|
| Pattern | Improved Neubauer |
| Material | Moulded thermal & shock resistant glass |
| Counting grids | Two, separated by a central trough |
| Squares | 400, each 0.05 x 0.05 mm |
| Volume over each square | 2.5 x 10⁻⁴ mm³ with special coverslip |
| Supplied with | 2 special coverslips, 2 dilution pipettes |
About This Product
A haemocytometer lets a known, small volume of suspension be counted under the microscope. The slide is designed for routine counts of red and white cells in blood, and it also works for bacteria or yeast. Because the volume over each square is fixed, counting cells in a set number of squares gives the number of cells per unit volume.
Frequently Asked Questions
Q1. What can be counted with this haemocytometer?
It is designed for routine red and white blood cell counts and can also be used to count bacteria or yeast cells in a suspension.
Q2. How is the cell concentration worked out?
With the special coverslip in place, each 0.05 x 0.05 mm square has 2.5 × 10⁻⁴ mm³ of suspension above it, so a count over known squares gives cells per unit volume.
Related: Microscopes & Accessories, Eyepiece Micrometer, Pro USB Microscope.
For a quotation on the Haemocytometer, Improved Neubauer Pattern, contact School Equipments India.
