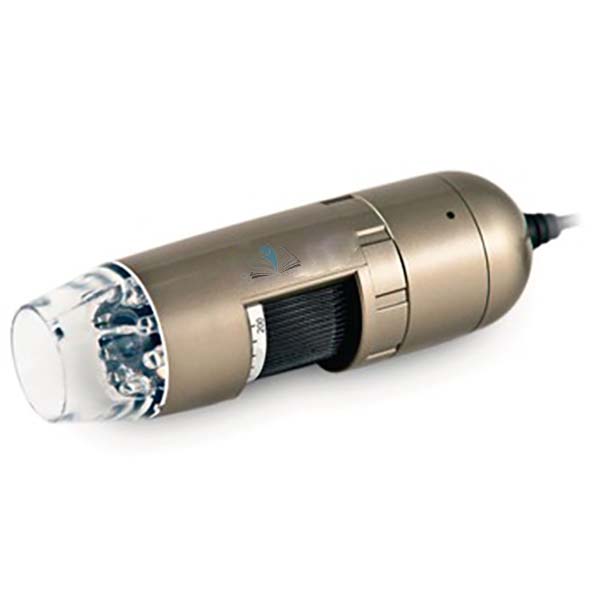

Quick Answer: The Pro USB Microscope is a 1.3MP USB microscope with 10x-70x and 200x magnification, eight switchable white LEDs, a magnification lock, and software measurement with calibration.
Last updated: October 2026
Key Features
1.3MP image sensor with good colour rendering and low-light performance
Magnification of 10x-70x and 200x with standard working distance optics
Housing with magnification lock and improved thumbwheel action
8 white LEDs that can be switched on or off
Software measurement with calibration, plus a Micro touch snapshot function
Picture, video and time-lapse output over USB 2.0
Technical Specifications
Specification
Value
Image resolution
1.3MP
Magnification
10x ~ 70x, 200x
Working distance
Standard
Interface
USB 2.0
LEDs
8, white, switchable on/off
Video frame rate
Up to 30 frames-per-second, 15fps at 1.3MP
Output
Picture, video, time-lapsed video
Measurement and calibration
Yes
Material
Composite
About This Product
The Pro USB Microscope is aimed at users who need more than a live image. Its software lets a measurement be taken from the screen after calibration, and the magnification lock holds the chosen setting while images are captured. Switchable LEDs give control over lighting, and a scroll lock is also included.
Frequently Asked Questions
Q1. Can the Pro USB Microscope take measurements? Yes. Measurement features with calibration are included in its software as standard.
Q2. What video frame rate does it record? Up to 30 frames per second, or 15 fps at the full 1.3MP resolution.
