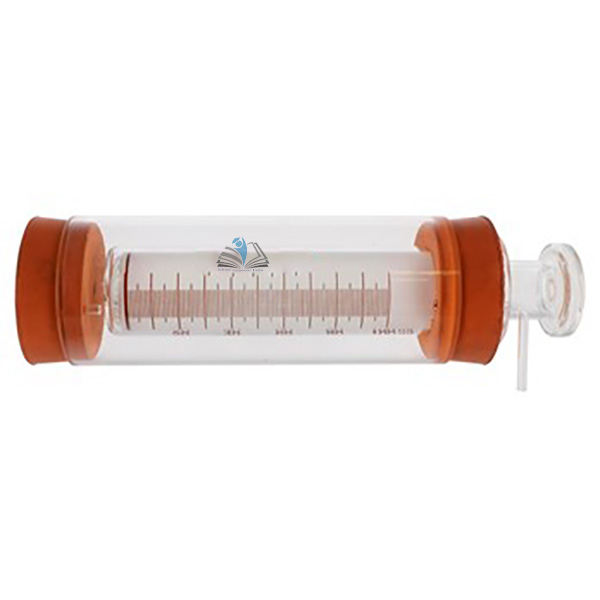

Steam Jacket And Syringe
Product Code : EL-MTP-11702
Quick Answer: The Steam Jacket And Syringe is a 100 ml graduated syringe inside a borosilicate glass steam jacket, used to find the molar mass of volatile liquids boiling below 80°C.
Last updated: October 2026
Key Features
- 100 ml graduated syringe with 0.1 cm3 graduations
- Borosilicate glass jacket held by two rubber bungs
- Bungs carry steam inlet and outlet tubes and a hole for a thermometer
- For volatile liquids with a boiling point below 80°C
- Supplied without thermometer
- Dimensions 215 mm x 60 mm; for teacher use
Technical Specifications
| Specification | Value |
|---|---|
| Syringe volume | 100 ml |
| Graduation | 0.1 cm3 |
| Jacket | Borosilicate glass |
| Dimensions | 215 mm x 60 mm |
| Thermometer | Not supplied |
| User | Teacher |
About This Product
Steam passing through the jacket vaporises the sample in the graduated syringe, and this is how the apparatus is used to determine the molar mass of volatile liquids with a boiling point below 80°C. A thermometer fits through the hole in the bung but is not supplied.
Frequently Asked Questions
Q1. Is a thermometer included?
No. The apparatus is supplied without a thermometer, although the bung has a hole to accommodate one.
Related: Materials & their Properties, Basic Micro Chemistry Kit, Microscale Chemistry Kit.
For a quotation on the Steam Jacket And Syringe, contact School Equipments India.
