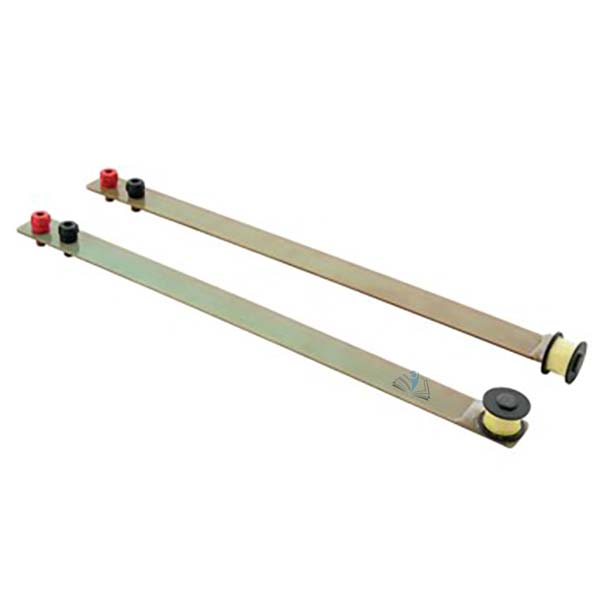

Axial and Lateral Search Coils
Product Code : EL-EE-10893
Quick Answer: The Axial and Lateral Search Coils are 5000-turn coils on fibreglass boards, one axial and one lateral, for determining field strength or flux density in the air gap of magnets or solenoids.
Last updated: October 2026
Key Features
- 5000 turns of very fine copper wire on a bobbin
- Fibreglass board, electrically insulated and non-magnetic
- Two 4 mm socket terminals at the other end of the board
- Axial coil: axis parallel to the board's axis
- Lateral coil: axis at 90 degrees to the board's axis
- Take an a.c. or d.c. signal for studying interacting magnetic fields
Technical Specifications
| Specification | Value |
|---|---|
| Turns | 5000 |
| Wire | Very fine copper |
| Board | Fibreglass, electrically insulated, non-magnetic |
| Terminals | Two 4 mm socket terminals |
| Coil orientation | Axial (parallel) and lateral (90 degrees) |
About This Product
The search coils are used to determine field strengths or flux density inside the air gap of magnets or solenoids. Applying an a.c. or d.c. signal to them lets the effect of interacting magnetic fields be studied. The two versions differ in coil orientation relative to the board.
Frequently Asked Questions
Q1. What is the difference between the axial and lateral coils?
The axial coil is mounted with its axis parallel to the axis of the board. The lateral coil has its axis at 90 degrees to the board's axis.
Q2. Can the coils be bought individually?
Yes. The Axial Search Coil and the Lateral Search Coil are available to order separately.
Related: Electricity & Electromagnetism, Axial Search Coil, Basic Student Meter.
For a quotation on the Axial and Lateral Search Coils, contact School Equipments India.
