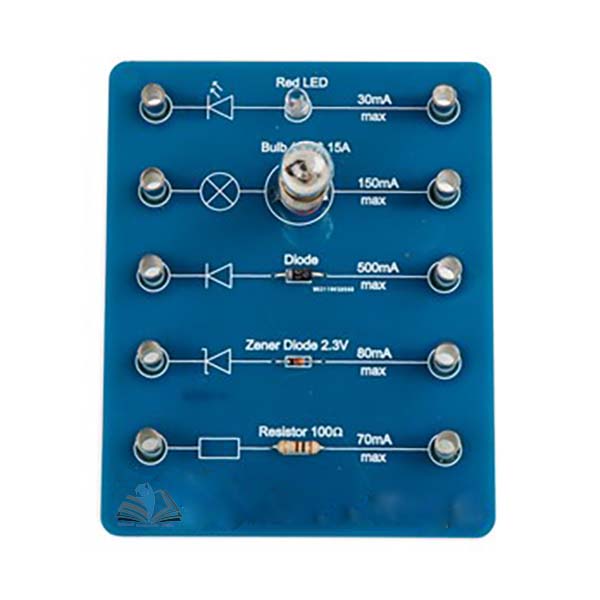

Quick Answer: The Component Investigations Board carries five labelled electrical components, an LED, bulb, resistor, Zener diode and silicon diode, for investigating current and voltage characteristics.
Last updated: October 2026
Key Features
Five different electrical components on one board
LED, bulb, resistor, Zener diode and silicon diode
Each component clearly labelled
For investigating current and voltage characteristics
Blue in colour
Technical Specifications
Specification
Value
Components
LED, bulb, resistor, Zener diode, silicon diode
Number of components
Five
Colour
Blue
About This Product
The board lets students in the classroom investigate how current and voltage behave across five different components. Each part is clearly labelled, so the LED, bulb, resistor, Zener diode and silicon diode can be identified at once. Export supply of the Component Investigations Board can be arranged to laboratories and schools in Brazil, Kuwait, Gambia, Burundi, Niger and Saint Lucia.
Frequently Asked Questions
Q1. Which components are on the board? An LED, a bulb, a resistor, a Zener diode and a silicon diode, each clearly labelled.
