Electric Fields Apparatus
Product Code : EL-EE-10917
Quick Answer: The Electric Fields Apparatus shows electric field patterns in a clear plastic dish, in much the same way that iron filings show magnetic fields, using six supplied electrodes.
Last updated: October 2026
Key Features
- Clear plastic dish, 90 mm diameter and 12 mm deep
- Base 140 x 125 mm with a pair of 4 mm socket terminals/electrode holders
- Thumb screw beside each terminal for fine height adjustment of the electrodes
- Six electrodes: two point source, two line source and two circular rings
- Rings of 35 mm and 70 mm diameter
- Patterns can be viewed directly or on an overhead projector
Technical Specifications
| Specification | Value |
|---|---|
| Dish | Clear plastic, 90 mm diameter x 12 mm depth |
| Base | 140 x 125 mm |
| Terminals | Pair of 4 mm socket terminals |
| Electrodes | Two point source, two line source, two rings (35 mm and 70 mm) |
| Power | Requires external power supply |
About This Product

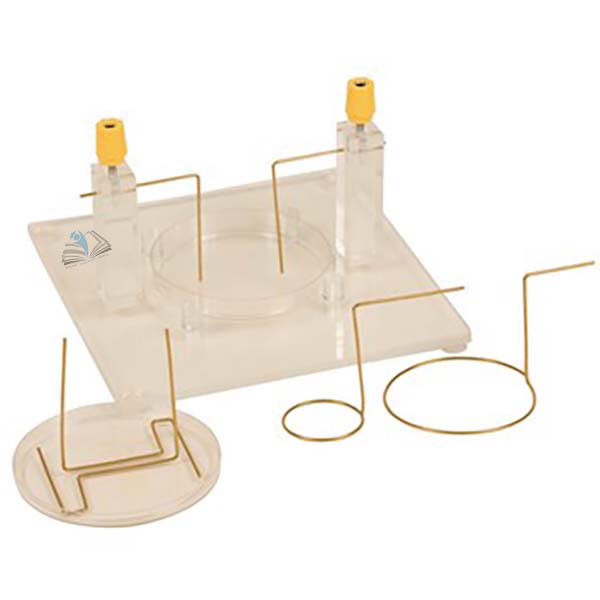

The apparatus lets electric field patterns be shown in much the same way that iron filings demonstrate magnetic fields. The patterns can be viewed directly or on an overhead projector. Electrodes sit in the terminal holders, and a thumb screw alongside each one gives fine height adjustment. An external power supply is required.
Frequently Asked Questions
Q1. Which electrodes are supplied?
Six electrodes: two 'point source', two 'line source' and two circular rings of 35 mm and 70 mm diameter.
Related: Electricity & Electromagnetism, Digital Electronic Multimeter, Pocket sized.
For a quotation on the Electric Fields Apparatus, contact School Equipments India.
