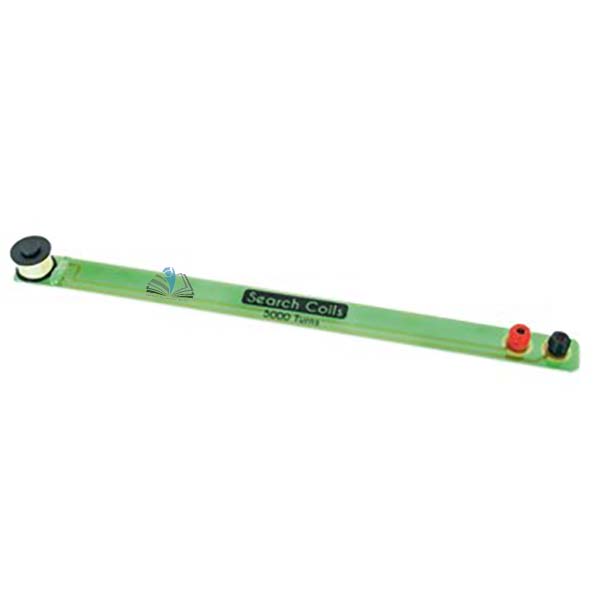

Quick Answer: The Lateral Search Coil determines field strength or flux density inside the air gap of magnets or solenoids, using 5000 turns of very fine copper wire set at 90 degrees to its fibreglass board.
Last updated: October 2026
Key Features
Coil axis at 90 degrees to the axis of the board
5000 turns of very fine copper wire on a bobbin
Fibreglass board, electrically insulated and non-magnetic
Two 4 mm socket terminals at the opposite end
Takes an a.c. or d.c. signal; a signal generator is also required
Technical Specifications
Specification
Value
Coil turns
5000
Coil orientation
Axis at 90 degrees to board axis
Board
Fibreglass, electrically insulated, non-magnetic
Terminals
Two 4 mm socket terminals
About This Product
The lateral coil is used to determine field strengths or flux density inside the air gap of magnets or solenoids. Applying an a.c. or d.c. signal lets the effect of interacting magnetic fields be studied, and a signal generator is also required for use. An Axial Search Coil is available separately. Export supply of the Lateral Search Coil can be arranged to laboratories and schools in Haiti, Kiribati, Guinea-Bissau, Honduras and Bulgaria.
Frequently Asked Questions
Q1. Is anything else needed to use the coil? Yes. A signal generator is also required for use.
