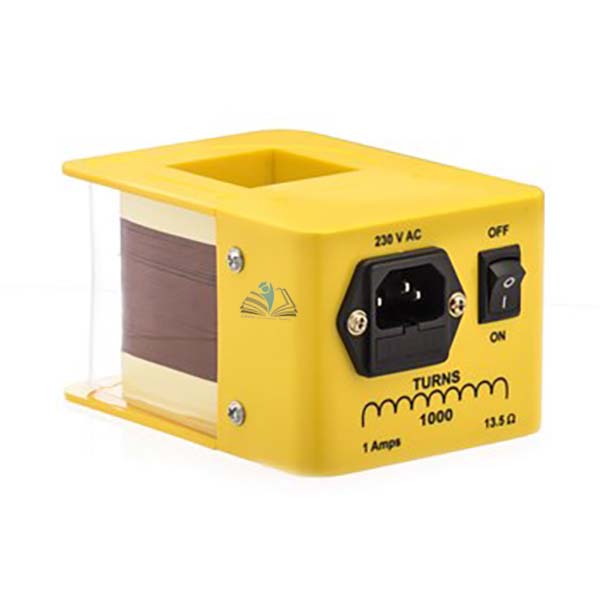

Quick Answer: The Mains Coil for Dissectible Transformer is a 1000-turn coil for up to 230 V a.c. that powers the nail melting and Thomson's rings demonstrations with the Dissectible Transformer and Induction Accessory Set.
Last updated: October 2026
Key Features
1000 turns
Input voltage 230 V a.c. maximum
Current 1 A maximum
Impedance 13.5 ohms
Central aperture 40 mm x 40 mm; overall height 70 mm
Technical Specifications
Specification
Value
Input voltage
230 V a.c. (max)
Number of turns
1000
Central aperture
40 mm x 40 mm
Overall height
70 mm
Impedance
13.5 ohms
Current
1 A (max)
About This Product
This coil is an accessory for the Dissectible Transformer. Used with the transformer and the Induction Accessory Set, it provides the power needed for the nail melting and Thomson's rings demonstrations. It takes up to 230 V a.c. and a current of no more than 1 A. Besides buyers across India, the Mains Coil for Dissectible Transformer can be exported to institutions in Mauritania, Uruguay, Papua New Guinea, Belize, Qatar and Kyrgyzstan.
Frequently Asked Questions
Q1. What is the mains coil used for? With the Dissectible Transformer and the Induction Accessory Set, it provides the power for the nail melting and Thomson's rings demonstrations.
