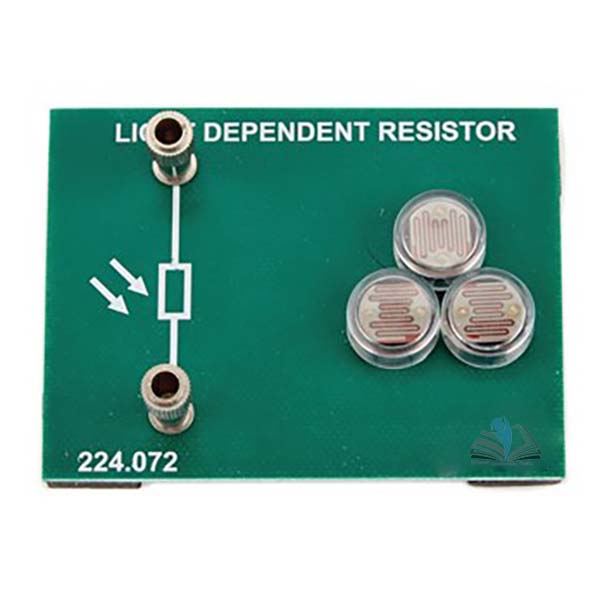

Simple Circuit Module Light Dependent Resistor Unit
Product Code : EL-EE-10955
Quick Answer: The Simple Circuit Module Light Dependent Resistor Unit uses three ORP12 light dependent resistors in parallel, giving approximately 200 ohms in room lighting, with 4 mm plug connections.
Last updated: October 2026
Key Features
Cluster of three ORP12 LDRs connected in parallel
Approximately 200 ohms in room lighting
Gives greater sensitivity and controls the current in a reed relay
4 mm plug connections
Technical Specifications
Specification
Value
LDRs
Three ORP12, in parallel
Resistance
200 ohms uncovered (approx.)
Connections
4 mm plug
About This Product
Three ORP12 light dependent resistors are wired in parallel on this unit, so its resistance is approximately 200 ohms in room lighting. The arrangement gives greater sensitivity and lets the unit control the current in a reed relay. It is one of the Simple Circuit Modules for pupils aged 11 to 13.
Frequently Asked Questions
Q1. Why does the unit use three LDRs? The cluster of three ORP12s in parallel has a resistance of approximately 200 ohms in room lighting, giving greater sensitivity and control of the current in a reed relay.
