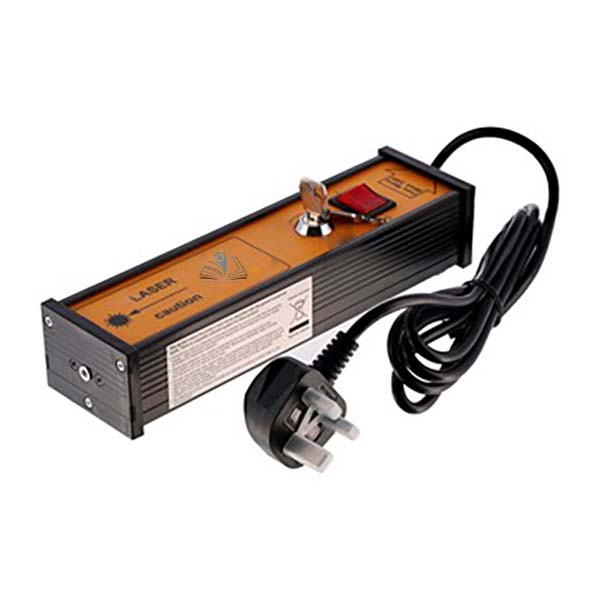

Quick Answer: The Solid State Laser is a 1 mW, Class 2 laser with a 635 nm wavelength, close to the 632.8 nm helium-neon line, in a metal case with a locking key switch to prevent unsupervised use.
Last updated: October 2026
Key Features
1 mW output, Class 2
Wavelength 635 nm, compared with 632.8 nm for helium-neon
Locking key switch with 2 keys and illuminated ON/OFF switch
Tapped (M5) exit hole for mounting optical components or fibres near the beam exit
Metal case with 1.8 m mains cable and 250 mA fuse
Tapped mounting point for the laser support arm from the laser accessories kit
Technical Specifications
Specification
Value
Wavelength
635nm
Power output
1mW
Laser class
Class 2
Beam divergence
3mrad
Beam diameter
6mm at 5M
Dimensions
270mm x 110mm x 110mm approx.
Weight
1.05kg approx.
About This Product
Its wavelength of 635 nm compares favourably with the 632.8 nm helium-neon wavelength. The tapped mounting point accepts the laser support arm from the laser accessories kit, allowing the laser to be held with an ordinary clamp stand and boss. A Laser Accessory Set is available separately.
Frequently Asked Questions
Q1. What stops the laser being used without supervision? A locking key switch, supplied with 2 keys, protects the laser against unsupervised use.
