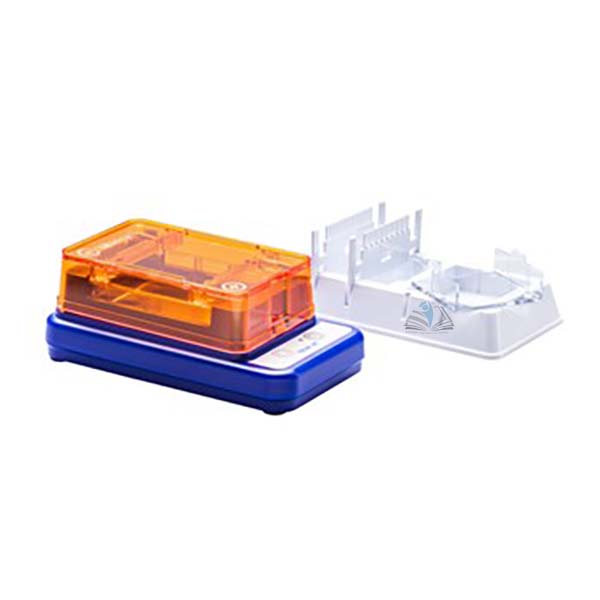

Electrophoresis Unit (with built-in illuminator)
.jpg)
Product Code : EL-GE-10511
Quick Answer: The Electrophoresis Unit (with built-in illuminator) is a gel electrophoresis unit with a built-in blue LED transilluminator, so DNA separation can be watched while 60 x 60 mm gels run at 48 V.
Last updated: October 2026
Key Features
- Built-in high intensity blue LED transilluminator for viewing the gel at any time
- Works with safe green DNA dyes, with no need for UV protection or ethidium bromide
- Low-voltage 48 V operation; gels are loaded and run without possibility of electric contact
- Gel and electrodes fit only the right way, so a gel cannot be run backwards
- Combs give 9 to 26 wells per gel in one or two rows
- Two-button operation: one for Run, one for Light
Technical Specifications
| Specification | Value |
|---|---|
| Gel size | 60 x 60 mm |
| Gel volume | 15 ml |
| Buffer volume | 25 ml (TBE) |
| Wells | 9 or 13 per row, one or two rows |
| Electrodes | Platinum and stainless steel |
| Power supply | AC 100-240 V, 50-60 Hz, 48 V |
| Dimensions | 230 x 100 x 70 mm |
| Weight | 350 g |
| Construction | Seamless polycarbonate and ABS injection moulded parts |
| System includes | Electrophoresis and transillumination units, casting platform, buffer chamber, two gel trays, two combs, carrying bag, universal power adapter, microfibre cloth |
About This Product
This unit combines electrophoresis and transillumination, so DNA bands can be watched as they separate, in as little as five minutes, and photographed with a phone, tablet or camera. Blue LED lighting gives uniform illumination with no edge artifacts. The seamless casting tray avoids leaks, and the 6 cm gel length separates tight bands. Besides buyers across India, the Electrophoresis Unit (with built-in illuminator) can be exported to institutions in Colombia, Mexico, Saint Vincent and the Grenadines, Uganda and Indonesia.
Frequently Asked Questions
Q1. Is UV protection needed?
No. The unit uses blue LED light with safe green DNA dyes, so there is no need for UV protection or ethidium bromide.
Q2. How many wells can a gel have?
The comb configuration allows 9 to 26 wells per gel, using one or two rows of combs with 9 or 13 wells each.
Related: Genetics & Evolution, Drosophila Food Starter Kit, Sach’s Water Culture Medium (Complete) - Pack of 6, Prepared Food For Drosophila.
For a quotation on the Electrophoresis Unit (with built-in illuminator), contact School Equipments India.
