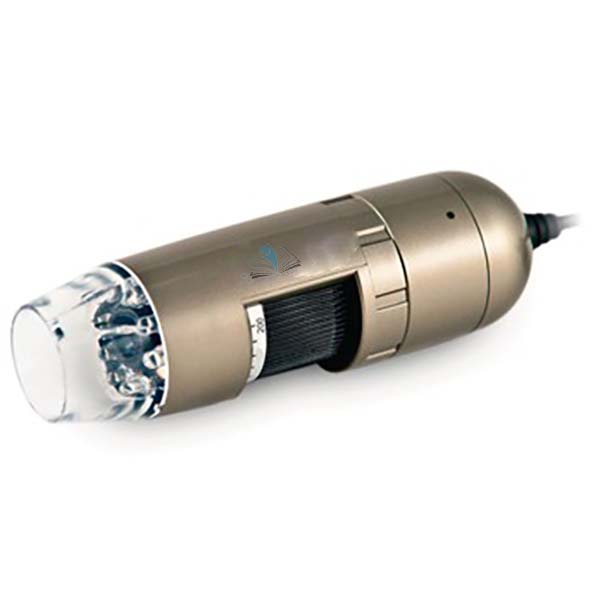

Pro USB Microscope
Product Code : EL-MA-10567
Quick Answer: The Pro USB Microscope is a 1.3MP USB microscope with 10x-70x and 200x magnification, eight switchable white LEDs, a magnification lock, and software measurement with calibration.
Last updated: October 2026
Key Features
- 1.3MP image sensor with good colour rendering and low-light performance
- Magnification of 10x-70x and 200x with standard working distance optics
- Housing with magnification lock and improved thumbwheel action
- 8 white LEDs that can be switched on or off
- Software measurement with calibration, plus a Micro touch snapshot function
- Picture, video and time-lapse output over USB 2.0
Technical Specifications
| Specification | Value |
|---|---|
| Image resolution | 1.3MP |
| Magnification | 10x ~ 70x, 200x |
| Working distance | Standard |
| Interface | USB 2.0 |
| LEDs | 8, white, switchable on/off |
| Video frame rate | Up to 30 frames-per-second, 15fps at 1.3MP |
| Output | Picture, video, time-lapsed video |
| Measurement and calibration | Yes |
| Material | Composite |
About This Product
The Pro USB Microscope is aimed at users who need more than a live image. Its software lets a measurement be taken from the screen after calibration, and the magnification lock holds the chosen setting while images are captured. Switchable LEDs give control over lighting, and a scroll lock is also included.
Frequently Asked Questions
Q1. Can the Pro USB Microscope take measurements?
Yes. Measurement features with calibration are included in its software as standard.
Q2. What video frame rate does it record?
Up to 30 frames per second, or 15 fps at the full 1.3MP resolution.
Related: Microscopes & Accessories, Basic USB Microscope, Eyepiece Micrometer.
For a quotation on the Pro USB Microscope, contact School Equipments India.
