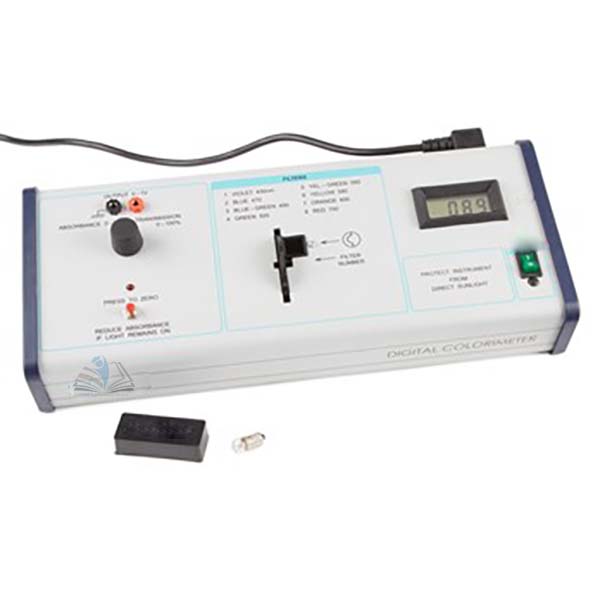

S-Range Digital Colorimeter - 240V
Product Code : EL-ME-11387
Quick Answer: The S-Range Digital Colorimeter - 240V is an LCD colorimeter with eight colour filters, two absorbance ranges and one transmission range, and a single holder for 10 mm path length cuvettes.
Last updated: October 2026
Key Features
- Two absorbance ranges and one transmission range, chosen by rotary switch
- 6V, 0.15A tungsten lamp with infra-red filter on a stabilised power supply
- Automatic zeroing at the press of a switch; insensitive to normal ambient lighting
- Eight colour filters in a rotatable holder; the disc can be removed
- Moulded cuvette holder for 10 mm cuvettes, with a drain hole in the base
- 0-1V output sockets for a datalogger or PC
Technical Specifications
| Specification | Value |
|---|---|
| Ranges | Two absorbance, one transmission |
| Lamp | 6V, 0.15A tungsten with infra-red filter |
| Filters | Eight colour filters, rotatable holder |
| Cuvette holder | Single, 10 mm path length |
| Display | LCD |
| Output | 0-1V sockets |
About This Product
Besides teaching the principles of colorimetric analysis in schools and colleges, this colorimeter can be used for the quantitative determination of substances present in small amounts, and to monitor a reaction that changes the absorption of transmitted light. The stabilised supply keeps the lamp output constant, and the filter disc can be taken out for cleaning or replacement. Spare filter wheels are available.
Frequently Asked Questions
Q1. Can the colorimeter be connected to a computer?
Yes. The 0-1V output sockets fitted as standard allow a datalogger or PC to be attached.
Q2. Does room lighting affect the readings?
The instrument is insensitive to normal ambient lighting.
Related: Measuring Equipment, 2.0 Wireless Colorimeter, Digital Stopclock.
For a quotation on the S-Range Digital Colorimeter - 240V, contact School Equipments India.
