Alpha Electronics Physics Students Kit
Product Code : EL-EE-10890
Quick Answer: The Alpha Electronics Physics Students Kit is a set of circuit boards for one student or lab group that brings electronic applications, such as sensors, transistors and logic gates, into physics lessons.
Last updated: October 2026
Key Features
- For one student or lab group, with student and teacher notes
- Covers the potential divider and the characteristics of the LDR and thermistor
- Transistor as a switch and as a current gain device
- Two-input AND and OR gates and an inverter
- Light, temperature and rain sensing units with a comparator
- Stored in a tray with lid
Technical Specifications
| Specification | Value |
|---|---|
| Power input | 8 to 12 V d.c. or a.c. |
| Regulated output | 5 V d.c., centre tap at 2.5 V |
| Current limit | 0.5 A |
| Intended for | One student or lab group |
| Storage | Tray with lid |
About This Product
In this kit, sensing devices control an output device, giving practice with signals and simple signal processing, including turning a gradual analogue change into a digital on/off signal for logic systems. The included Power Supply Regulator Board takes 8 to 12 V d.c. or a.c. from a bench power supply and converts it to a regulated 5 V d.c. with a centre tap at 2.5 V. It limits the current to 0.5 A, helping guard against accidental overload and incorrect polarity.
Frequently Asked Questions
Q1. What does the kit contain?

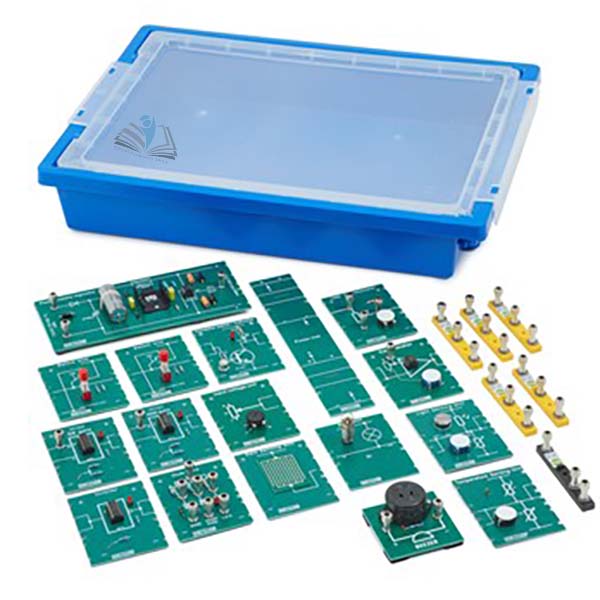

A Power Supply Regulator Board, comparator, temperature, rain and light sensing units, inverter, two-input OR and AND gates, transistor switch/indicator, diode, buzzer and bulb units, 2 switch units, input voltage unit, 100k potentiometer, power link board, 1 brown and 5 yellow Alphalinks.
Q2. How is the kit powered?
The included Alpha Power Supply Regulator Board takes 8 to 12 V d.c. or a.c. from any bench power supply and gives a regulated 5 V d.c., limiting the current to 0.5 A.
Related: Electricity & Electromagnetism, Electromagnetics Kit, Ammeter Dual Range (Analogue).
For a quotation on the Alpha Electronics Physics Students Kit, contact School Equipments India.
