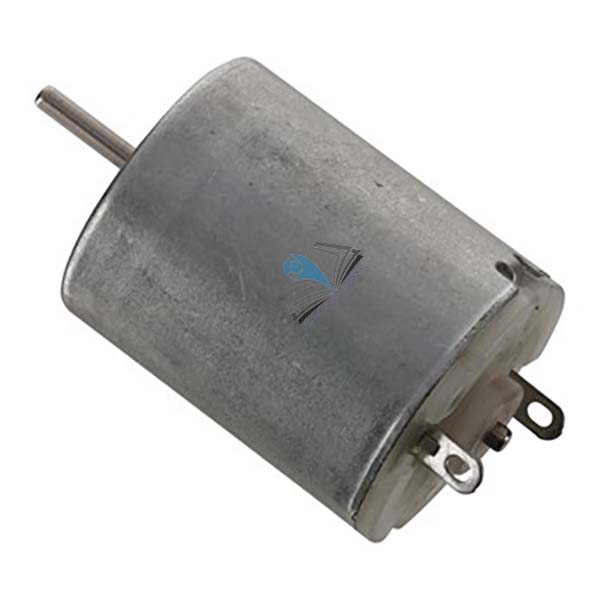

Electric Motor 3 - 6V
Product Code : EL-EE-10867
Quick Answer: The Electric Motor 3 - 6V is an unmounted low-voltage d.c. motor for model making and similar applications, with a 3-6 V range and a 2 mm shaft.
Last updated: October 2026
Key Features
- Low-voltage d.c. motor with a 3-6 V voltage range
- Cylindrical body, 31 mm long and 24 mm in diameter
- Bearings in either white metal or phosphor bronze
- Solder tags on the rear end clips for the electrical connection
- Supplied unmounted, with a 2 mm diameter shaft
Technical Specifications
| Specification | Value |
|---|---|
| Voltage range | 3-6 V d.c. |
| Dimensions | 31 mm (L) x 24 mm (D) |
| Shaft diameter | 2 mm |
| Bearings | White metal or phosphor bronze |
| Mounting | Unmounted |
About This Product
This small motor is meant for model making and similar low-voltage work. It runs on d.c. within a 3 to 6 V range, and electrical connection is by solder tags on its rear end clips. It comes as a bare cylindrical motor without a mount.
Frequently Asked Questions
Q1. What voltage does the motor run on?
It is a low-voltage d.c. motor with a voltage range of 3 to 6 V.
Q2. What bearings does the motor have?
The cylindrical body has either white metal or phosphor bronze bearings.
Related: Electricity & Electromagnetism, Economy Push Button Switch, BEK Universal Clip.
For a quotation on the Electric Motor 3 - 6V, contact School Equipments India.
