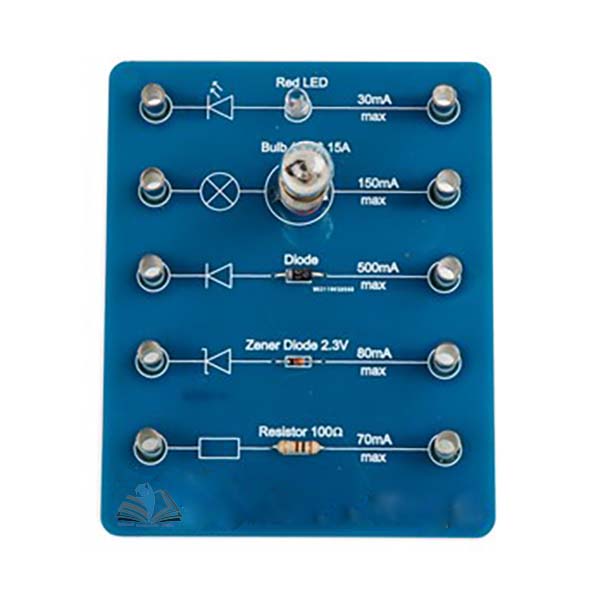

Component Investigations Board
Product Code : EL-EE-10900
Quick Answer: The Component Investigations Board carries five labelled electrical components, an LED, bulb, resistor, Zener diode and silicon diode, for investigating current and voltage characteristics.
Last updated: October 2026
Key Features
- Five different electrical components on one board
- LED, bulb, resistor, Zener diode and silicon diode
- Each component clearly labelled
- For investigating current and voltage characteristics
- Blue in colour
Technical Specifications
| Specification | Value |
|---|---|
| Components | LED, bulb, resistor, Zener diode, silicon diode |
| Number of components | Five |
| Colour | Blue |
About This Product
The board lets students in the classroom investigate how current and voltage behave across five different components. Each part is clearly labelled, so the LED, bulb, resistor, Zener diode and silicon diode can be identified at once. Export supply of the Component Investigations Board can be arranged to laboratories and schools in Brazil, Kuwait, Gambia, Burundi, Niger and Saint Lucia.
Frequently Asked Questions
Q1. Which components are on the board?
An LED, a bulb, a resistor, a Zener diode and a silicon diode, each clearly labelled.
Related: Electricity & Electromagnetism, Component Holders, Decade Resistance Unit.
For a quotation on the Component Investigations Board, contact School Equipments India.
