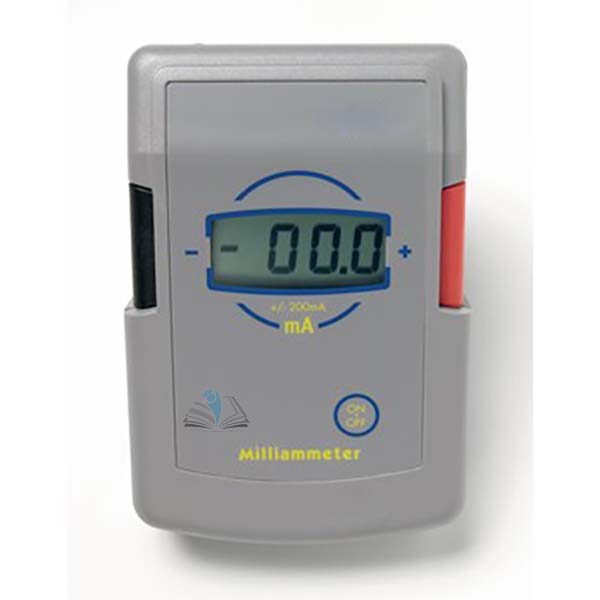

Digital Milliammeter - 0 to 199.9mA d.c.
Product Code : EL-EE-10880
Quick Answer: The Digital Milliammeter - 0 to 199.9mA d.c. is a d.c.-only digital meter with a 3½-digit LCD, a 0 to 199.9 mA range and an internal resistance of 1 ohm.
Last updated: October 2026
Key Features
- 3½-digit LCD with polarity and low-battery indication
- Measures d.c. only, from 0 to 199.9 mA
- Internal resistance of 1 ohm
- Switches off automatically after 50 minutes of inactivity
- Front-panel socket layout and graphics help users move from circuit diagram to wired circuit
- Takes an internal 9 V PP3 battery or equivalent, not included
Technical Specifications
| Specification | Value |
|---|---|
| Range | 0-199.9 mA d.c. |
| Display | 3½ digit LCD |
| Internal resistance | 1 ohm |
| Accuracy | 1% of full scale indication, typical |
| Battery | 9 V PP3 or equivalent (not included) |
| Dimensions | 130 mm x 92 mm x 55 mm |
| Automatic switch-off | After 50 minutes of inactivity |
About This Product
This milliammeter is designed for education use and reads direct current only, up to 199.9 mA. The position and labelling of its 4 mm sockets and the front-panel graphics are planned to ease the step from a circuit diagram to the physical circuit. It powers down by itself after 50 minutes without use, and the display shows polarity and a low-battery warning. Besides buyers across India, the Digital Milliammeter - 0 to 199.9mA d.c. can be exported to institutions in Serbia, Lebanon, New Zealand, Australia, Nicaragua and Mauritius.
Frequently Asked Questions
Q1. Can this meter measure alternating current?
No. Its range is 0 to 199.9 mA d.c. only.
Q2. What battery does the milliammeter use?
An internal 9 V PP3 battery or equivalent. It is not included and is available to purchase separately.
Related: Electricity & Electromagnetism, Simple Circuit Module Single Pole Double Throw Switch, BEK Capacitor 1000F 25V.
For a quotation on the Digital Milliammeter - 0 to 199.9mA d.c., contact School Equipments India.
