Magnetic Field Demonstrator
Product Code : EL-EE-11001
Quick Answer: The Magnetic Field Demonstrator is a set of four transparent plastic plates, each with 98 small chambers holding iron rods that act effectively as plotting compasses to show a magnetic field's configuration.
Last updated: October 2026
Key Features
- Four transparent plastic plates, 153 mm x 76 mm x 6 mm
- Each plate has a 14 x 7 matrix of 98 small circular chambers
- Each chamber holds an iron rod that works effectively as a plotting compass
- Plates can be arranged as one large surface or as faces of a cube
- Suitable for use on an overhead projector
Technical Specifications
| Specification | Value |
|---|---|
| Plates | Four, transparent plastic |
| Plate size | 153 mm x 76 mm x 6 mm |
| Chambers per plate | 98 (14 x 7) |
| Chamber contents | Iron rod |
About This Product

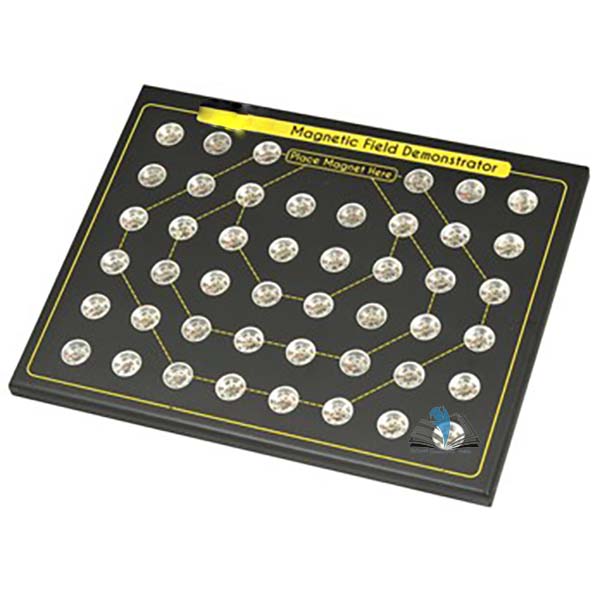

The iron rod in each chamber behaves effectively as a plotting compass, so the plates show the configuration of a magnetic field in one or two dimensions. They can be arranged in various ways, for example as a single large two-dimensional surface or as the faces of a cube, and being transparent they can be used on an overhead projector.
Frequently Asked Questions
Q1. Can the plates be shown on a projector?
Yes. The plates are transparent, so they are suitable for use on an overhead projector.
Related: Electricity & Electromagnetism, Materials Collection Kit.
For a quotation on the Magnetic Field Demonstrator, contact School Equipments India.
