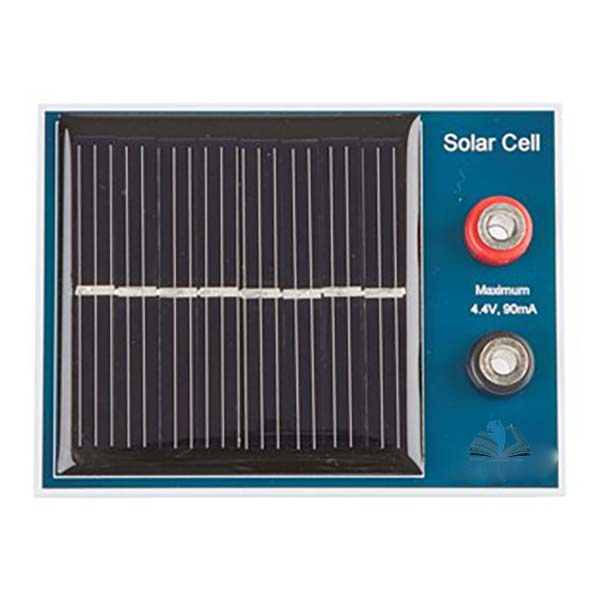

Quick Answer: The Solar Cell Mounted is a mono-crystalline solar panel with a maximum rating of 4.4 V, 90 mA that can be energised by a bright lamp or sunlight for investigating solar cell behaviour.
Last updated: October 2026
Key Features
Mono-crystalline solar panel
Maximum rating of 4.4 V, 90 mA
Can be energised by a bright lamp or sunlight
Suited to investigations of output voltage against light colour, intensity and exposed cell area
Technical Specifications
Specification
Value
Panel type
Mono-crystalline
Maximum voltage
4.4 V
Maximum current
90 mA
Energy source
Solar
About This Product
Students can use this panel to explore how a solar cell behaves. Using filters, they can see how output voltage changes with the colour or wavelength of light, and with a light meter how it changes with light intensity. Other investigations include varying the area of cell exposed, finding how maximum power changes with light intensity at a fixed load, and finding the optimum load for maximum power transfer at a known light intensity. The Solar Cell Mounted is available for supply within India and for export to Ecuador, Jamaica, Eswatini, Bulgaria, Antigua and Barbuda and Tanzania.
Frequently Asked Questions
Q1. What light source does the panel need? It can be energised by a bright lamp or by sunlight.
