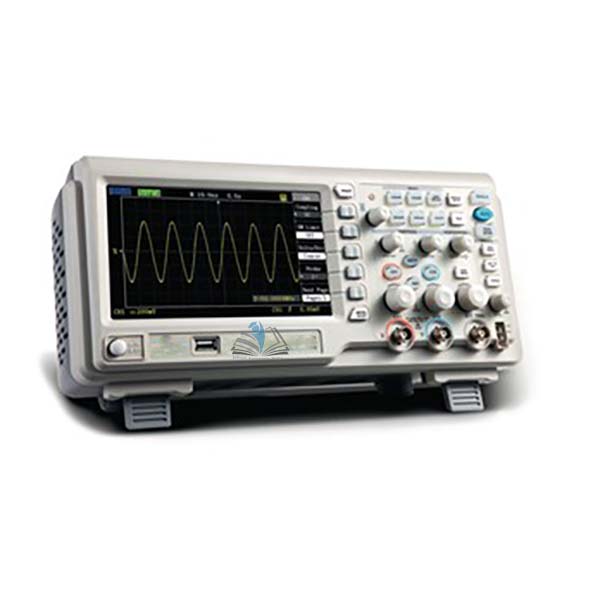

Quick Answer: The Digital Oscilloscope - Dual Channel, 100MHz is a 2-channel, 100 MHz digital oscilloscope with a widescreen colour TFT LCD, sampling at 1G Sa/s on a single channel and 500M Sa/s on dual channel.
Last updated: October 2026
Key Features
100 MHz bandwidth with 2 channels
Trigger types: Edge, Pulse, Video, Slope and Alternation
32 automatic measurements plus manual cursor tracking
Vertical sensitivity 2 mV/div to 5 V/div
USB Host, USB Device and RS-232 interfaces
Menu can be switched off to extend the viewing area by 25%
Technical Specifications
Specification
Value
Bandwidth
100 MHz
Channels
2
Sampling rate
Single channel 1G Sa/s, dual channel 500M Sa/s
Vertical sensitivity
2mV/div to 5V/div
Trigger sources
CH1, CH2, EXT, EXT/5, AC Line
Interfaces
USB Host, USB Device, RS-232
Waveform memory
2 reference, 16 common, 20 internal storage/output groups
About This Product
The oscilloscope offers digital filtering, waveform recording and a Pass/Fail function, with adjustable waveform and grid brightness and an on-line help system. Through the USB Host port a USB flash disc can be used for storage and for upgrading the system software, while the USB Device port connects to a PC for remote communication. A shortcut key prints the screen, and PictBridge is supported.
Frequently Asked Questions
Q1. What is supplied with the oscilloscope? A user manual, 1:1/10:1 probes (2 pieces each), a USB cable and a CD containing PC software.
