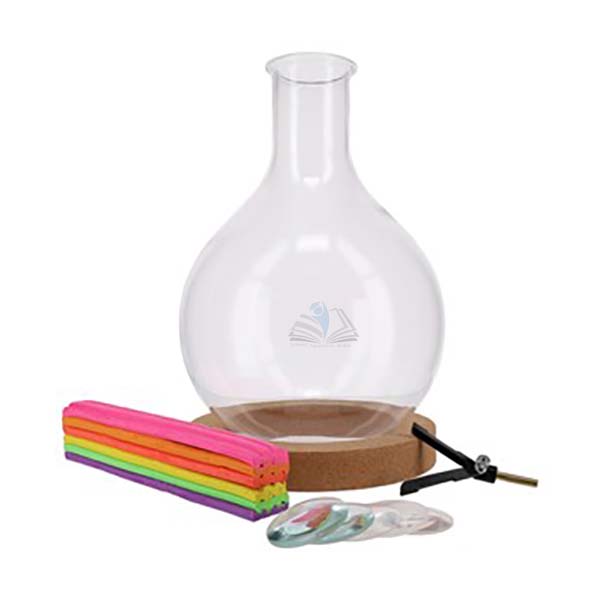

Quick Answer: The Model Eye Kit uses a 5 litre round bottom glass flask and five 50 mm meniscus lenses to demonstrate short, normal and long sight, and their correction, when a beam of light is passed through.
Last updated: October 2026
Key Features
5 litre round bottom glass flask with cork ring stand
One each of +11D, +8D, +5.5D, +2.5D and -3D meniscus lenses, 50 mm diameter
450 g of plastic modelling clay for fixing lenses to the flask
+11D, +8D and +5.5D lenses show short, normal and long sight respectively
+2.5D and -3D lenses are used for correcting the long and short sighted condition
Technical Specifications
Specification
Value
Flask
5 litre round bottom glass, cork ring stand
Lenses
50 mm meniscus: +11D, +8D, +5.5D, +2.5D, -3D
Modelling clay
450 g plastic
About This Product
The flask is filled with water and a little fluorescein is added so the path of light through the model eye shows up. One of the first three lenses is fixed to the flask with modelling clay to model short, normal or long sight, and the remaining two show how the condition is corrected. The kit is intended for use with the LED white or a laser. Besides buyers across India, the Model Eye Kit can be exported to institutions in Mauritania, Syria, Senegal, Djibouti, Peru and Saudi Arabia.
Frequently Asked Questions
Q1. Is fluorescein included in the kit? No. Fluorescein Sodium Salt is available separately, in a 5 g quantity.
Q2. What light source is used with the Model Eye Kit? It is intended for use with the LED white or a laser, with the beam passed through the lens and flask.
