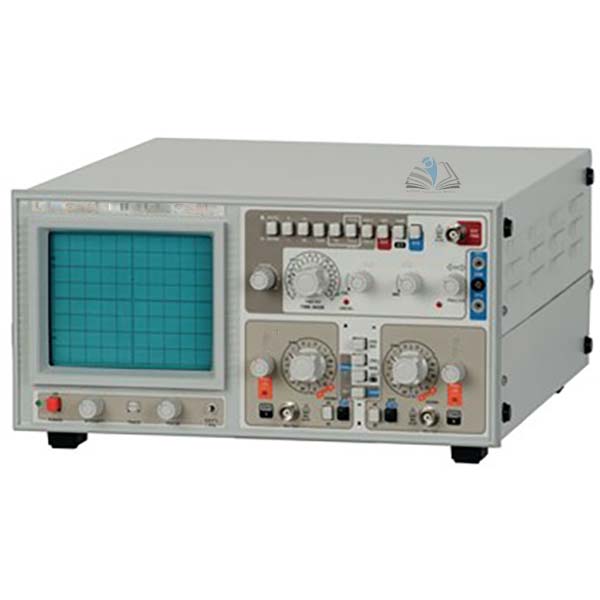

Oscilloscope - Dual Trace, 30MHz With Component Tester
Product Code : EL-W-11183
Quick Answer: The Oscilloscope - Dual Trace, 30MHz With Component Tester offers DC to 30 MHz vertical bandwidth, triggering up to 40 MHz, a 140 mm rectangular CRT and a built-in component tester/comparator.
Last updated: October 2026
Key Features
- Deflection coefficient 5 mV/div to 20 V/div in 12 calibrated steps
- x5 magnification gives up to 1 mV/div sensitivity on both channels
- Time base 0.5 µs/div to 0.2 s/div in 18 calibrated steps
- Modes: CH1, CH2, alternate or chop, CH2 invert, add, subtract and X-Y
- Variable hold-off, multimode triggering, mains trigger and TV frame and line triggering
- Supplied with a manual and two input BNC leads
Technical Specifications
| Specification | Value |
|---|---|
| Vertical bandwidth | DC to 30 MHz |
| Deflection coefficient | 5 mV/div to 20 V/div, 12 calibrated steps |
| Time base | 0.5 µs/div to 0.2 s/div, 18 calibrated steps |
| Fastest sweep | 40 ns/div approx, with x5 expansion |
| Triggering | Up to 40 MHz |
| CRT | 140 mm rectangular, internal graticule |
| Display | 80 x 100 mm |
| Z modulation | TTL level |
About This Product
The two independent channels can be viewed singly, together in alternate or chop mode, or combined by addition and subtraction, with CH2 inversion and X-Y operation also available. A continuously variable uncalibrated control works between the time base steps. Outputs are regulated, with thermal shutdown protection in case of overload or short circuit.
Frequently Asked Questions
Q1. How fast can the time base sweep?
The calibrated range is 0.5 µs/div to 0.2 s/div in 18 steps. With x5 expansion, the fastest sweep speed extends to approximately 40 ns/div.
Q2. What is the highest sensitivity?
The deflection coefficient runs from 5 mV/div to 20 V/div in 12 calibrated steps, and x5 magnification takes it to 1 mV/div and 2 mV/div.
