Film Reticles with Micrometer Scale
Product Code : EL-MA-10556
Quick Answer: Film Reticles with Micrometer Scale are plastic film strips of eyepiece micrometer scales that can be cut out to fit microscope eyepieces measuring 16-24 mm, with 10 scales on the 2 strips in each pack.
Last updated: October 2026
Key Features

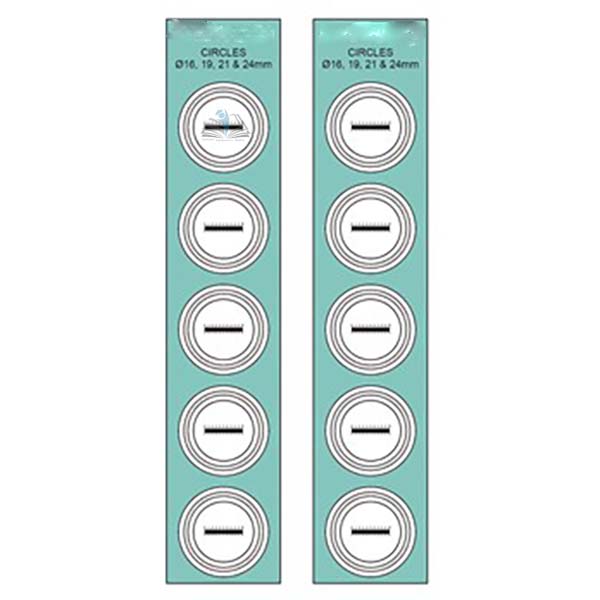

- 2 strips per pack, each with 5 eyepiece micrometer scales, 10 in total
- Scale: 10 mm long with 100 divisions of 0.1 mm
- Cut out to fit eyepieces measuring 16-24 mm
- Guide circles of 16, 19, 21 and 24 mm around each scale for cutting
- Strip size 150 x 30 mm, 0.18 mm thick
Technical Specifications
| Specification | Value |
|---|---|
| Material | Plastic film |
| Strips per pack | 2 |
| Scales per strip | 5 |
| Micrometer scale | 10 mm length, 100 divisions of 0.1 mm |
| Guide circles | 16, 19, 21 and 24 mm |
| Overall size | 150 x 30 x 0.18 mm |
About This Product
An eyepiece micrometer lets the size of a specimen be measured through the microscope. Instead of fitting a new eyepiece with a built-in scale, a scale is cut from the strip along the guide circle that matches the eyepiece and placed at the optical plane inside it, so the scale and the specimen are in focus together. Besides buyers across India, the Film Reticles with Micrometer Scale can be exported to institutions in Colombia, Tanzania, Oman, Egypt and Albania.
Frequently Asked Questions
Q1. How do I find which size to cut?
Remove the eyepiece and look at its open end. If it has a plastic insert, measure the width of the small recess where the reticle sits. If it has a threaded ring, measure the diameter across the internal thread where the ring fits.
Q2. Where does the reticle sit in the eyepiece?
At the optical plane, so that it and the specimen are both in focus. Look through the eyepiece and push a pencil up the open end until its point is sharp. A flange on the inside wall positions the reticle.
Related: Microscopes & Accessories, Lens Cleaning Tissues, Flexview Digital USB Microscope, Microscope Dust Cover.
For a quotation on the Film Reticles with Micrometer Scale, contact School Equipments India.
