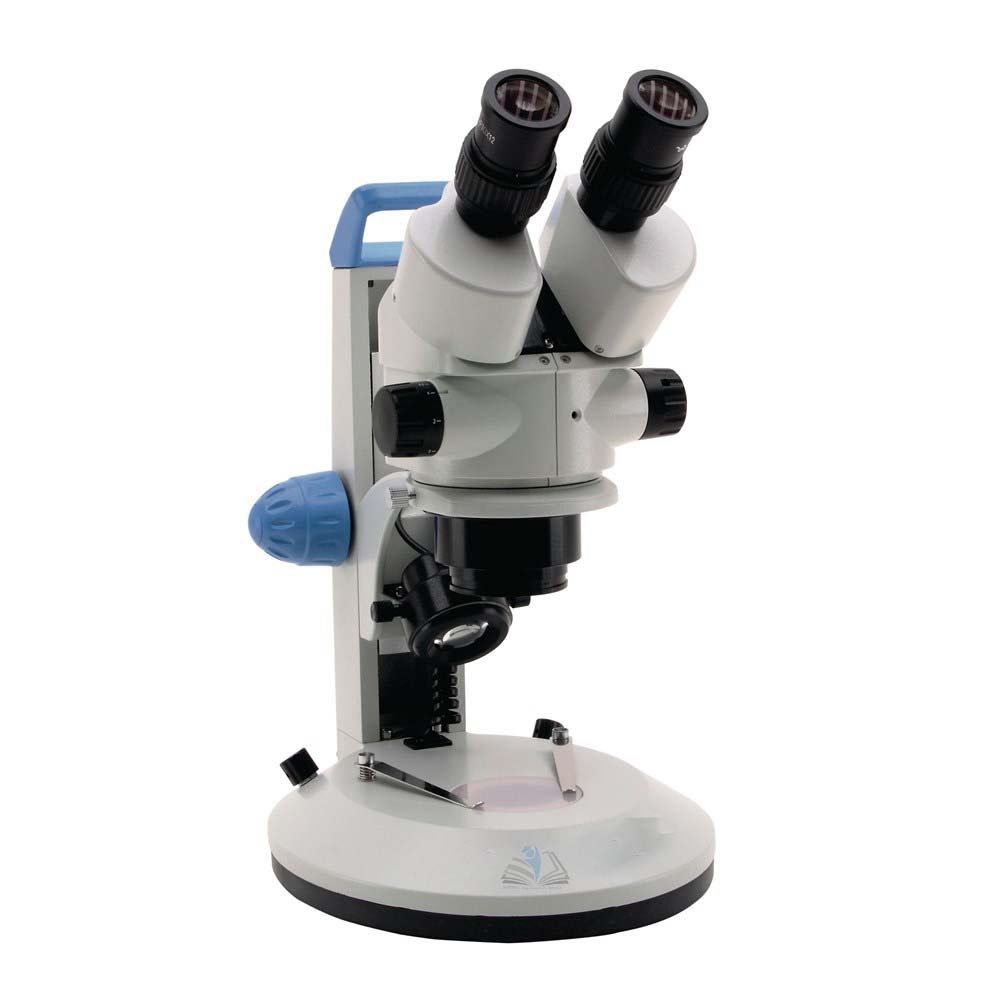

Zoom Stereo Microscope LED 45x
Product Code : EL-MA-10594
Quick Answer: The Zoom Stereo Microscope LED 45x is a binocular stereo microscope with 0.7x to 4.5x achromatic zoom objectives, WF10x/20mm eyepieces and LED incident and transmitted light, reaching up to 45x.
Last updated: October 2026
Key Features
- Total magnification up to 45x; higher with additional eyepieces and lenses
- Achromatic 0.7x and 4.5x zoom objectives, zoom factor 6.43:1
- 85 mm working distance
- Binocular head, 360° rotating, 45° inclined, dioptre adjustment on both eyepieces
- Incident and transmitted LED illumination, intensity adjustable; incident angle adjustable
- Supplied with power supply, dust cover and instructions
Technical Specifications
| Specification | Value |
|---|---|
| Total magnification | Up to 45x |
| Eyepieces | WF10x/20mm |
| Objectives | Achromatic 0.7x and 4.5x zoom |
| Zoom factor | 6.43:1 |
| Working distance | 85 mm |
| Interpupillary adjustment | 51-75 mm |
| Nosepiece | Turret type |
| Power supply | External 110/240V, 50/60Hz, 1A, max. power 7W |
| Dimensions | (H)360mm x (W)300mm x (D)190mm |
| Weight | 7kg |
About This Product
A zoom stereo microscope lets the user change magnification smoothly across the range rather than in fixed steps. The semi-transparent plastic stage disc works with the transmitted LED light, while the angled incident light illuminates solid specimens from above. Focusing is by a rack and pinion with a pair of knobs. The Zoom Stereo Microscope LED 45x is available for supply within India and for export to Lesotho, Kazakhstan, Equatorial Guinea, Serbia and São Tomé and Príncipe.
Frequently Asked Questions
Q1. Can the magnification go above 45x?
Yes. Higher magnifications are possible by using additional eyepieces and lenses.
Related: Microscopes & Accessories, Economy Monoscope 20x, Bug Pots.
For a quotation on the Zoom Stereo Microscope LED 45x, contact School Equipments India.
