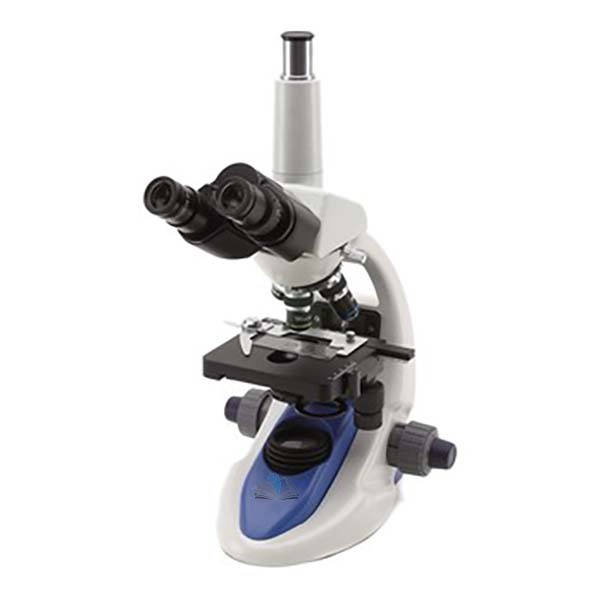

Trinocular LED Microscope 1000x
Product Code : EL-MA-10581
Quick Answer: The Trinocular LED Microscope 1000x has binocular eyepieces for students and a vertical monocular port for the teacher, with 4X to 100X objectives and magnification up to 1000x.
Last updated: October 2026
Key Features
- Trinocular head: binocular eyepieces plus a vertical monocular eyepiece
- Magnification up to 1000x with 4X, 10X, 40X and 100X objectives
- WF10X/18mm eyepieces
- Graduated coaxial coarse and fine focus
- 3W LED illumination with adjustable intensity
- Supplied with instruction manual, power supply and dust cover
Technical Specifications
| Specification | Value |
|---|---|
| Microscope type | Trinocular |
| Eyepiece | WF10X/18mm |
| Objectives | 4X, 10X, 40X, 100X |
| Magnification | Up to 1000x |
| Focus | Coaxial coarse and fine, graduated |
| Illumination | 3W LED, adjustable intensity |
| Voltage | 240V 50/60Hz |
| Dimensions | (H) 370 mm x (W) 235 mm x (D) 290 mm |
About This Product
With a trinocular head, a student works through the binocular eyepieces while the teacher checks the same field through the vertical monocular eyepiece, without changing the instrument's settings. This makes it a useful school microscope for more advanced practical work. It can also be used with an eyepiece camera, an eyepiece micrometer or a 10 inch tablet so that the specimen can be seen easily. The Trinocular LED Microscope 1000x is available for supply within India and for export to Honduras, Mozambique, Moldova, Palestine and Timor-Leste.
Frequently Asked Questions
Q1. What is the vertical eyepiece on the trinocular head used for?
A teacher can look at the specimen through it while a student uses the binocular eyepieces, so both see the same view without changing the settings.
Q2. What can be attached to this microscope?
An eyepiece camera, an eyepiece micrometer or a 10 inch tablet can be used with it to show the specimen being viewed.
Related: Microscopes & Accessories, stage Micrometer, Microscope Power Lead - 5W.
For a quotation on the Trinocular LED Microscope 1000x, contact School Equipments India.
